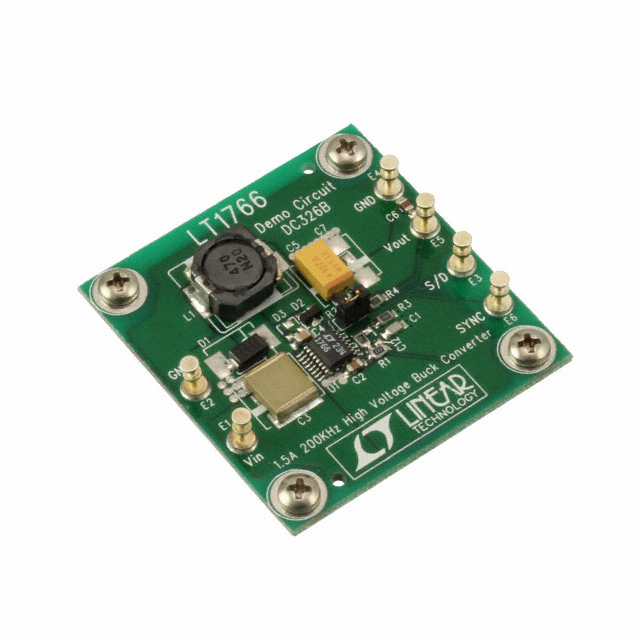

DC326B
ADI (Analog Devices, Inc.)
Images are for reference only.
See Product Specifications for product details.
Buy DC326B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DC326B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DC326B Datasheet| Part Number | DC326B |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | BOARD EVAL FOR LT1766EGN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | |||||
|---|---|---|---|---|---|---|
| $36.679 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | DC326B |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Description | BOARD EVAL FOR LT1766EGN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 896 pcs |
| Datasheet | DC326B.pdf |
| Voltage - Output | 3.3V or 5V |
| Voltage - Input | 5.5 V ~ 60 V |
| Utilized IC / Part | LT1766 |
| Supplied Contents | Board(s) |
| Series | - |
| Regulator Topology | Buck |
| Outputs and Type | 1, Non-Isolated |
| Other Names | DEMO 326B |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | DC/DC, Step Down |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 200kHz |
| Detailed Description | LT1766 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Current - Output | 1A |
| Board Type | Fully Populated |
| Base Part Number | LT1766 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 896 pcs of ADI (Analog Devices, Inc.)DC326B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
