NGTG20N60L2TF1G
AMI Semiconductor / ON Semiconductor

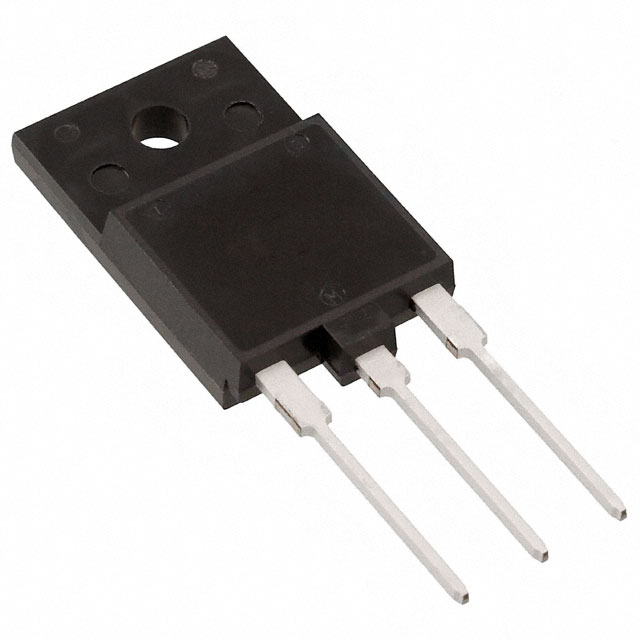

Images are for reference only.
See Product Specifications for product details.
Buy NGTG20N60L2TF1G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NGTG20N60L2TF1G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NGTG20N60L2TF1G Datasheet| Part Number | NGTG20N60L2TF1G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IGBT 600V 40A 64W TO-3PF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 30pcs | 120pcs | 510pcs | 1020pcs | |
|---|---|---|---|---|---|---|
| $1.079 | $0.913 | $0.777 | $0.639 | $0.529 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NGTG20N60L2TF1G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT 600V 40A 64W TO-3PF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69959 pcs |
| Datasheet | NGTG20N60L2TF1G.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 1.65V @ 15V, 20A |
| Test Condition | 300V, 20A, 30 Ohm, 15V |
| Td (on/off) @ 25°C | 60ns/193ns |
| Switching Energy | - |
| Series | - |
| Power - Max | 64W |
| Packaging | Tube |
| Package / Case | TO-3P-3 Full Pack |
| Other Names | NGTG20N60L2TF1GOS |
| Operating Temperature | 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | - |
| Gate Charge | 84nC |
| Detailed Description | IGBT 600V 40A 64W Through Hole |
| Current - Collector Pulsed (Icm) | 105A |
| Current - Collector (Ic) (Max) | 40A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 69959 pcs of AMI Semiconductor / ON SemiconductorNGTG20N60L2TF1G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
