BTS7960B
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

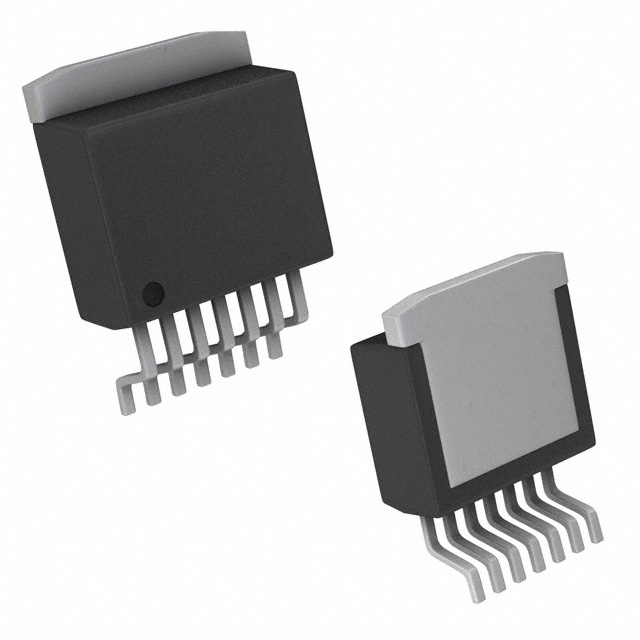

Images are for reference only.
See Product Specifications for product details.
Buy BTS7960B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy BTS7960B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload BTS7960B Datasheet| Part Number | BTS7960B |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC NOVALITHIC 1/2 BRIDGE TO263-7 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | BTS7960B |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Full, Half-Bridge Drivers |
| Description | IC NOVALITHIC 1/2 BRIDGE TO263-7 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5749 pcs |
| Datasheet | BTS7960B.pdf |
| Voltage - Supply | 5.5 V ~ 27.5 V |
| Voltage - Load | 5.5 V ~ 27.5 V |
| Technology | DMOS |
| Supplier Device Package | P-TO-263-7 |
| Series | NovalithIC™ |
| Rds On (Typ) | 9 mOhm LS, 7 mOhm HS |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Output Configuration | Half Bridge |
| Other Names | BTS7960BINTR BTS7960BT BTS7960BT-ND SP000014711 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Load Type | Inductive |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Interface | Logic |
| Features | Latch Function, Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Detailed Description | Half Bridge Driver DC Motors, General Purpose DMOS P-TO-263-7 |
| Current - Peak Output | 60A |
| Current - Output / Channel | 40A |
| Base Part Number | BTS7960 |
| Applications | DC Motors, General Purpose |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 5749 pcs of International Rectifier (Infineon Technologies)BTS7960B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
RFQ Email: sales@gfg-tx.com
