B3W-9010-R1R
Omron

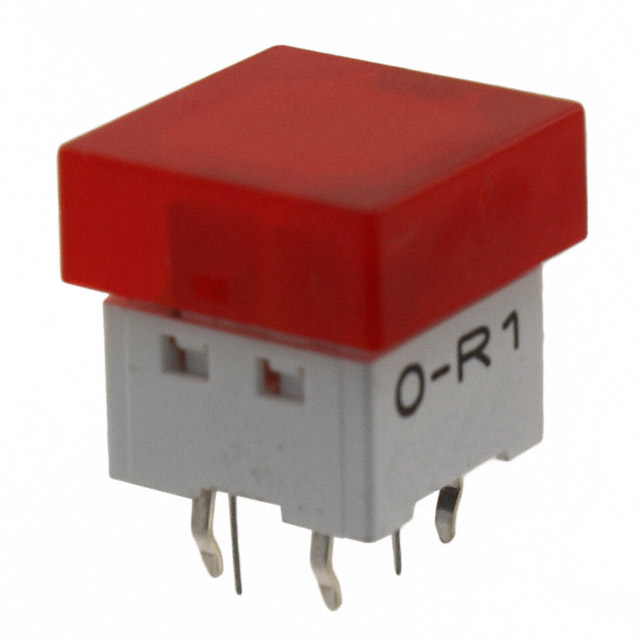

Images are for reference only.
See Product Specifications for product details.
Buy B3W-9010-R1R with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy B3W-9010-R1R with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload B3W-9010-R1R Datasheet| Part Number | B3W-9010-R1R |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 25pcs | 50pcs | ||
|---|---|---|---|---|---|---|
| $1.503 | $1.433 | $1.361 | $1.325 | |||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | B3W-9010-R1R |
|---|---|
| Manufacturer | Omron |
| Product Category | Tactile Switches |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23789 pcs |
| Datasheet | B3W-9010-R1R.pdf |
| Termination Style | PC Pin |
| Switch Travel | 0.25mm |
| Switch Function | Off-Mom |
| Series | B3W-9 |
| Packaging | Bulk |
| Outline | 12.00mm x 12.00mm |
| Other Names | B3W9010R1R SW1105 |
| Operating Temperature | -25°C ~ 70°C |
| Operating Force | 160gf |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - |
| Illumination Voltage (Nominal) | 1.8 VDC |
| Illumination Type, Color | LED, Red |
| Illumination | Illuminated |
| Features | Sealed - Fully |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO |
| Actuator Type | Square Button |
| Actuator Orientation | Top Actuated |
| Actuator Material | - |
| Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 10.20mm |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 23789 pcs of OmronB3W-9010-R1R in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
