Home > Manufacturers > Triad Magnetics > CSE187L-P-B

CSE187L-P-B

Triad Magnetics

  • CSE187L-P-B

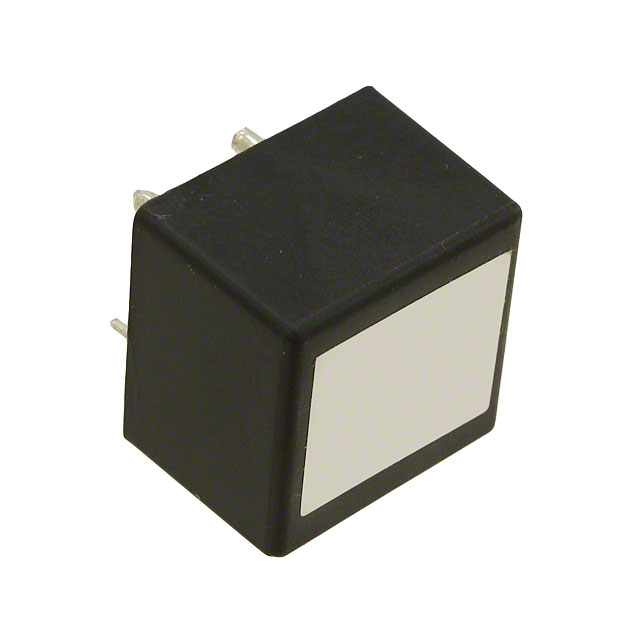

Images are for reference only.
See Product Specifications for product details.
Buy CSE187L-P-B with confidence from GFG-TX.com, 1 Year Warranty

Request a Quote

Dowload CSE187L-P-B Datasheet
Part Number CSE187L-P-B
Manufacturer Triad Magnetics
Description CURR SENSE XFMR 1:500 30A T/H
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 29671 pcs
Reference Price
(In US Dollars)		 324pcs
$1.007
Submit a Request For Quotation on quantities greater than those displayed.
Target Price(USD):
Quantity:
Total:
$1.007

Product parameter

Part Number CSE187L-P-B
Manufacturer Triad Magnetics
Product Category Current Sense Transformers
Description CURR SENSE XFMR 1:500 30A T/H
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 29671 pcs
Datasheet CSE187L-P-B.pdf
Weight -
Type Invasive
Turns Ratio - Primary:Secondary 1:500
Termination Style PC Pin
Size / Dimension 0.875" L x 0.875" W (22.23mm x 22.23mm)
Series CSE
Ratings -
Packaging Bulk
Other Names Q5729688
Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height - Seated (Max) 0.720" (18.29mm)
Frequency Range 50Hz ~ 400Hz
Energy Time (E.T.) -
Detailed Description 30A 1:500 Current Sense Transformer 50Hz ~ 400Hz 3 mOhm Primary, 21 Ohm Secondary Through Hole
DC Resistance (DCR) 3 mOhm Primary, 21 Ohm Secondary
Current Ratio -
Current Rating 30A
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 29671 pcs of Triad MagneticsCSE187L-P-B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
