Broadcast Video

Broadcast Video Solutions

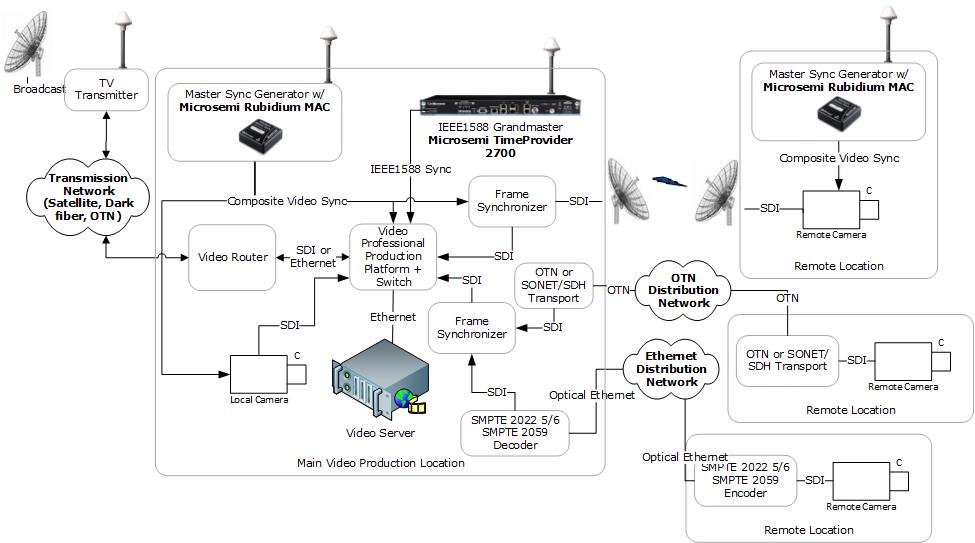

Today’s media landscape is highly dynamic, with the content created, broadcasted and consumed over traditional and emerging channels. Broadcast and content creation equipment must balance the need to accommodate legacy workflows, while enabling creation and support of new workflows and revenue streams. Microsemi’s portfolio addresses applications spanning the video broadcast architecture including TV transmitters, pro video broadcast production platforms, video cameras and video recorders, and video transport over OTN, SONET/SDH and Ethernet. Our solutions are engineered to simplify your broadcast capture and workflow equipment designs, advancing your customers’ operational efficiencies and business agility.

Explore Microsemi’s portfolio for video and broadcasting applications:

• Component clocks including Miniature Rubidium Atomic Clock (MAC) and Chip Scale Atomic Clock (CSAC)
• Timing ICs including IEEE 1588 PLLs, Clock Synthesis and Clock Fan-out Buffers
• PTP IEEE 1588v2 Grandmaster Clocks
• PCIe Switches
• FPGA & SoC

  • Low-range density FPGAs & SoCs
  • Mid-range density FPGAs
• Ethernet networking including Ethernet Switches and Ethernet PHYs
• SAS/SATA RAID Adapters
• SAS/SATA Host Bus Adapters
• SAS Expanders
• Crosspoint Switches
• OTN Processors

Microsemi's industry-leading advantages for broadcast video include:

• Component clocks with 50% lower power, smallest form factor, highest accuracy over temperature and best-in-class holdover, ideal for master sync generator and TV transmitter exciter subsystems
• Ultra low jitter, small footprint IEEE 1588 PLLs, clock synthesis and buffers with SMPTE 2059 profile in software for easier, high reliability clock tree designs in video switches, frame synchronization and video cameras
• PCIe switches for DVR/NVR storage and CPU connectivity delivering up to 60% lower power and 75% fewer chips with 2x port density, along with exclusive error containment (DPC, eDPC, CTS) diagnostics and debug
• Reliable, low-power and non-volatile Flash-based FPGAs/SoCs with instant-on capabilities, ideal for secure boot DVR/NVR system management
• Ethernet switches and Ethernet PHYs with ns-accurate IEEE 1588 timing and configurations up to 48xGE + 4x10GE, ideal for video recorders, Ethernet switch core and physical media (fiber/copper) interfaces
• SAS/SATA RAID, Host Bus Adapters and Expanders delivering 30% lower power than competitive options and a single software interface for both RAID and HBA, ideal for video recorders
• Signal integrity crosspoint switches for routing SDI and HDMI media signals, supporting up to 6G-SDI and HDMI 2.0 with flexible interface options from 4 to 144 ports
• OTN processors with integrated video client switching for video transport, supporting up to 20G of video client mapping into both SONET/SDH and OTN, and FE/GE and 10GE including IEEE 1588v2 and SyncE timing distribution.  Multiple interface support including SD-SDI, HD-SDI, 3G-SDI, Dual Link HD-SDI, DVB-ASI and DV6000.

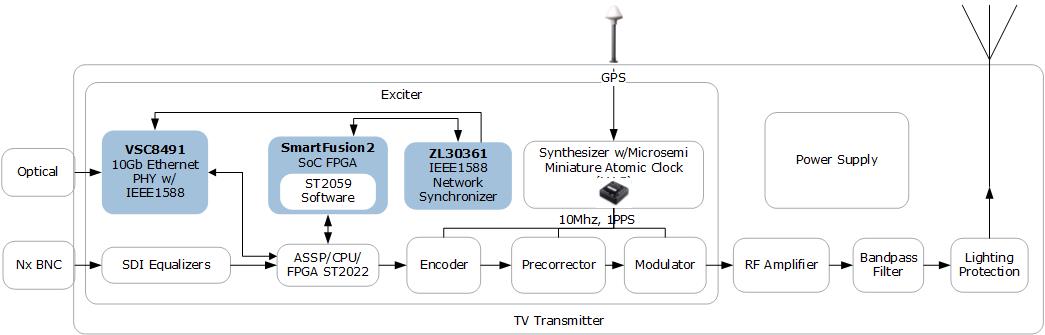

TV Transmitter
