AD5821ABCBZ-REEL
ADI (Analog Devices, Inc.)

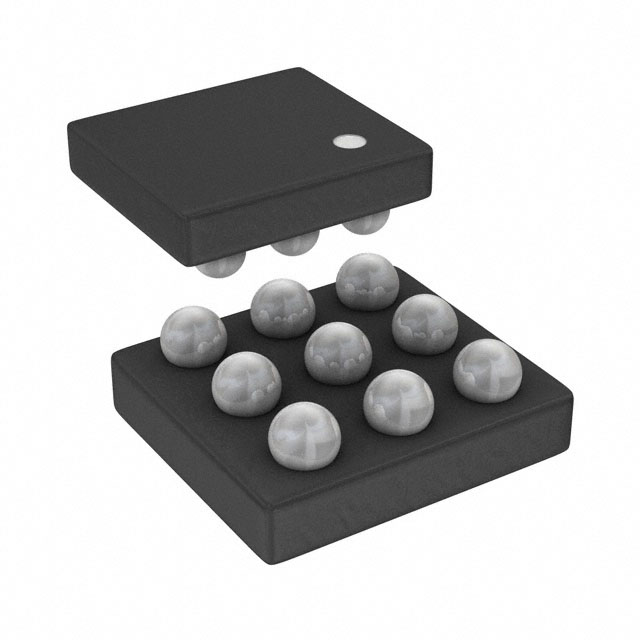

Images are for reference only.
See Product Specifications for product details.
Buy AD5821ABCBZ-REEL with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AD5821ABCBZ-REEL with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AD5821ABCBZ-REEL Datasheet| Part Number | AD5821ABCBZ-REEL |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC DAC 10BIT CURRENTSINK 9WLCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | AD5821ABCBZ-REEL |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Data Acquisition - Digital to Analog Converters (DAC) |
| Description | IC DAC 10BIT CURRENTSINK 9WLCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5400 pcs |
| Datasheet | AD5821ABCBZ-REEL.pdf |
| Voltage - Supply, Digital | 2.7 V ~ 5.5 V |
| Voltage - Supply, Analog | 2.7 V ~ 5.5 V |
| Supplier Device Package | 9-WLCSP (1.52 x 1.69) |
| Settling Time | 250µs (Typ) |
| Series | - |
| Reference Type | Internal |
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-UFBGA, WLCSP |
| Output Type | Current - Buffered |
| Operating Temperature | -40°C ~ 85°C |
| Number of D/A Converters | 1 |
| Number of Bits | 10 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| INL/DNL (LSB) | ±1.5, ±1 (Max) |
| Differential Output | No |
| Detailed Description | 10 Bit Digital to Analog Converter 1 9-WLCSP (1.52 x 1.69) |
| Data Interface | I²C |
| Base Part Number | AD5821 |
| Architecture | Current Sink |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 5400 pcs of ADI (Analog Devices, Inc.)AD5821ABCBZ-REEL in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
