LT1176CSW#TRPBF
ADI (Analog Devices, Inc.)

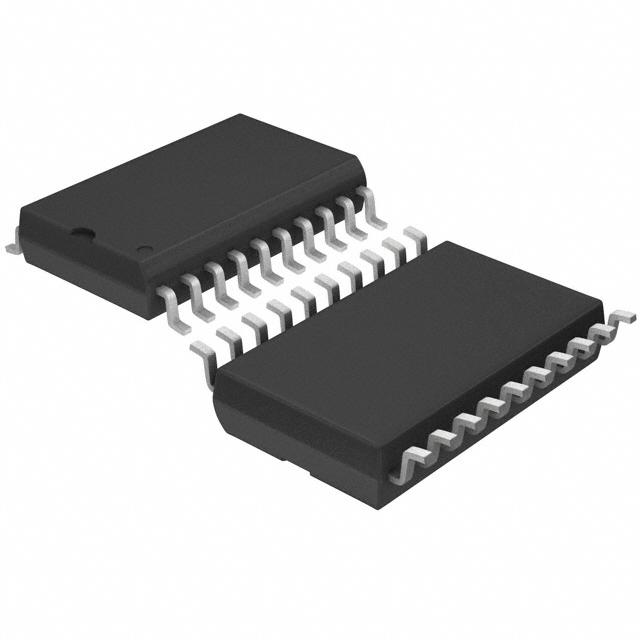

Images are for reference only.
See Product Specifications for product details.
Buy LT1176CSW#TRPBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy LT1176CSW#TRPBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload LT1176CSW#TRPBF Datasheet| Part Number | LT1176CSW#TRPBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG BCK FLYBCK INV ADJ 20SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | LT1176CSW#TRPBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Description | IC REG BCK FLYBCK INV ADJ 20SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24416 pcs |
| Datasheet | LT1176CSW#TRPBF.pdf |
| Voltage - Output (Min/Fixed) | 2.21V |
| Voltage - Output (Max) | 31.5V |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 35V |
| Topology | Buck, Flyback |
| Synchronous Rectifier | No |
| Supplier Device Package | 20-SOIC |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Output Type | Adjustable |
| Output Configuration | Positive or Negative |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Frequency - Switching | 100kHz |
| Detailed Description | Buck, Flyback Switching Regulator IC Positive or Negative Adjustable 2.21V 1 Output 1.2A (Switch) 20-SOIC (0.295", 7.50mm Width) |
| Current - Output | 1.2A (Switch) |
| Base Part Number | LT1176 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 24416 pcs of ADI (Analog Devices, Inc.)LT1176CSW#TRPBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
