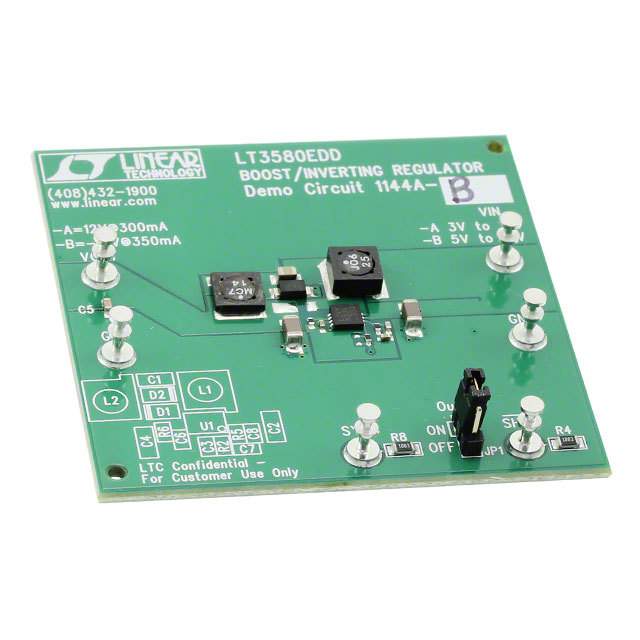

DC1144A-B
ADI (Analog Devices, Inc.)
Images are for reference only.
See Product Specifications for product details.
Buy DC1144A-B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DC1144A-B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DC1144A-B Datasheet| Part Number | DC1144A-B |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | EVAL BOARD INVERTING REG LT3580 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | DC1144A-B |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Description | EVAL BOARD INVERTING REG LT3580 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 711 pcs |
| Datasheet | DC1144A-B.pdf |
| Voltage - Output | -12V |
| Voltage - Input | 5 V ~ 12 V |
| Utilized IC / Part | LT3580 |
| Supplied Contents | Board(s) |
| Series | - |
| Regulator Topology | Inverting |
| Outputs and Type | 1, Non-Isolated |
| Other Names | DEMO 1144A-B |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | DC/DC, Negative Inverter |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 2MHz |
| Detailed Description | LT3580 - DC/DC, Negative Inverter 1, Non-Isolated Outputs Evaluation Board |
| Current - Output | 350mA |
| Board Type | Fully Populated |
| Base Part Number | LT3580 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 711 pcs of ADI (Analog Devices, Inc.)DC1144A-B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
