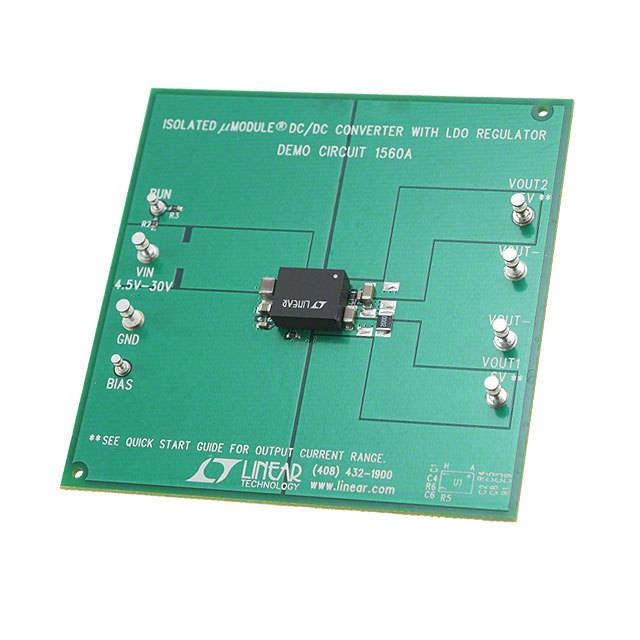

DC1560A
ADI (Analog Devices, Inc.)
Images are for reference only.
See Product Specifications for product details.
Buy DC1560A with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DC1560A with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DC1560A Datasheet| Part Number | DC1560A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | BOARD EVAL FOR LTM8048 |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | DC1560A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Description | BOARD EVAL FOR LTM8048 |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 1620 pcs |
| Datasheet | DC1560A.pdf |
| Voltage - Output | 5V, 6V |
| Voltage - Input | 4.5 V ~ 30 V |
| Utilized IC / Part | LTM8048 |
| Supplied Contents | Board(s) |
| Series | µModule® |
| Regulator Topology | Flyback |
| Outputs and Type | 2, Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | DC/DC, Step Down with LDO |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Frequency - Switching | - |
| Detailed Description | LTM8048 µModule® DC/DC, Step Down with LDO 2, Isolated Outputs Evaluation Board |
| Current - Output | 300mA |
| Board Type | Fully Populated |
| Base Part Number | LTM8048 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 1620 pcs of ADI (Analog Devices, Inc.)DC1560A in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
