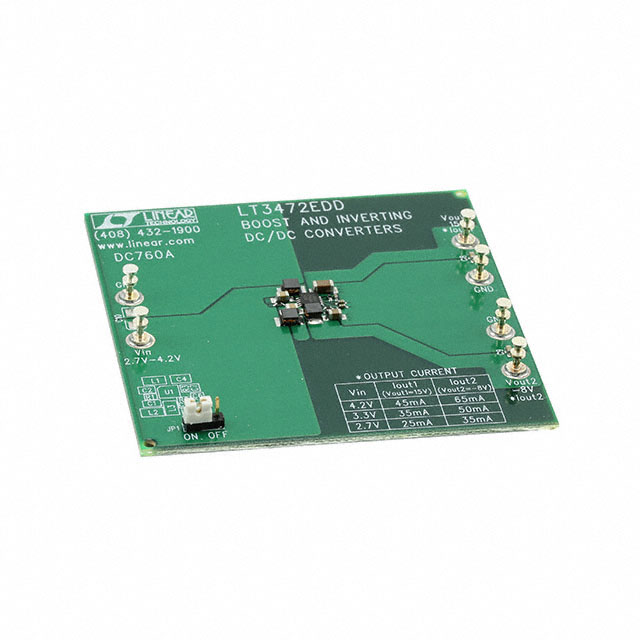

DC760A
ADI (Analog Devices, Inc.)
Images are for reference only.
See Product Specifications for product details.
Buy DC760A with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DC760A with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DC760A Datasheet| Part Number | DC760A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | BOARD EVAL FOR LT3472EDD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | DC760A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Description | BOARD EVAL FOR LT3472EDD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 826 pcs |
| Datasheet | DC760A.pdf |
| Voltage - Output | 15V, -8V |
| Voltage - Input | 2.7 V ~ 4.2 V |
| Utilized IC / Part | LT3472 |
| Supplied Contents | Board(s) |
| Series | - |
| Regulator Topology | Boost, Inverting |
| Outputs and Type | 2, Non-Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | DC/DC, Step Up |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 1.1MHz |
| Detailed Description | LT3472 - DC/DC, Step Up 2, Non-Isolated Outputs Evaluation Board |
| Current - Output | 65mA, 45mA |
| Board Type | Fully Populated |
| Base Part Number | LT3472 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 826 pcs of ADI (Analog Devices, Inc.)DC760A in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
