ADG5298HFRZ
ADI (Analog Devices, Inc.)

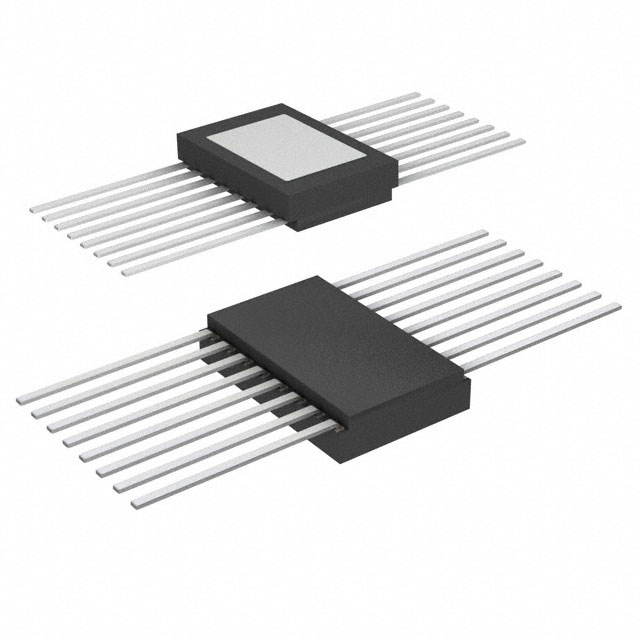

Images are for reference only.
See Product Specifications for product details.
Buy ADG5298HFRZ with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ADG5298HFRZ with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ADG5298HFRZ Datasheet| Part Number | ADG5298HFRZ |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC MUX/DEMUX 8:1 16FLATPACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ADG5298HFRZ |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Description | IC MUX/DEMUX 8:1 16FLATPACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 523 pcs |
| Datasheet | ADG5298HFRZ.pdf |
| Voltage - Supply, Single (V+) | 9 V ~ 40 V |
| Voltage - Supply, Dual (V±) | ±9 V ~ 22 V |
| Switch Time (Ton, Toff) (Max) | 245ns, 260ns |
| Switch Circuit | - |
| Supplier Device Package | 16-CFlatPack |
| Series | - |
| Packaging | Bulk |
| Package / Case | 16-CFlatPack |
| Operating Temperature | -55°C ~ 210°C (TA) |
| On-State Resistance (Max) | 350 Ohm |
| Number of Circuits | 1 |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 1 Circuit IC Switch 8:1 350 Ohm 16-CFlatPack |
| Current - Leakage (IS(off)) (Max) | 8nA |
| Crosstalk | -80dB @ 1MHz |
| Charge Injection | 0.4pC |
| Channel-to-Channel Matching (ΔRon) | 1.5 Ohm |
| Channel Capacitance (CS(off), CD(off)) | 2.8pF, 33pF |
| Base Part Number | ADG5298 |
| -3db Bandwidth | 121MHz |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 523 pcs of ADI (Analog Devices, Inc.)ADG5298HFRZ in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
