ADG1517BCPZ-REEL7
ADI (Analog Devices, Inc.)

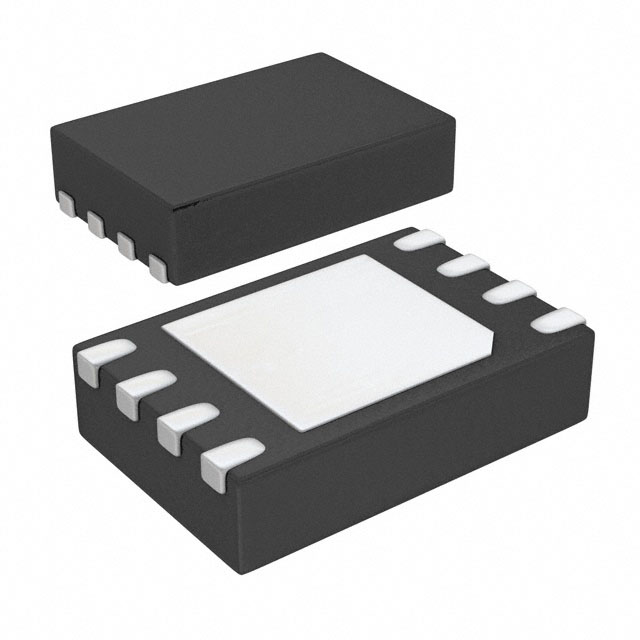

Images are for reference only.
See Product Specifications for product details.
Buy ADG1517BCPZ-REEL7 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ADG1517BCPZ-REEL7 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ADG1517BCPZ-REEL7 Datasheet| Part Number | ADG1517BCPZ-REEL7 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC SWITCH SPST 8LFCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ADG1517BCPZ-REEL7 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Description | IC SWITCH SPST 8LFCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40837 pcs |
| Datasheet | ADG1517BCPZ-REEL7.pdf |
| Voltage - Supply, Single (V+) | 5 V ~ 16.5 V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 175ns, 155ns |
| Switch Circuit | SPST - NO |
| Supplier Device Package | 8-LFCSP-WD (2x3) |
| Series | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Other Names | ADG1517BCPZ-REEL7CT ADG1517BCPZREEL7 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 1.85 Ohm |
| Number of Circuits | 1 |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 1 Circuit IC Switch 1:1 1.85 Ohm 8-LFCSP-WD (2x3) |
| Current - Leakage (IS(off)) (Max) | 10nA (Typ) |
| Crosstalk | - |
| Charge Injection | 70pC |
| Channel-to-Channel Matching (ΔRon) | - |
| Channel Capacitance (CS(off), CD(off)) | 68pF, 68pF |
| Base Part Number | ADG1517 |
| -3db Bandwidth | 65MHz |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 40837 pcs of ADI (Analog Devices, Inc.)ADG1517BCPZ-REEL7 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
