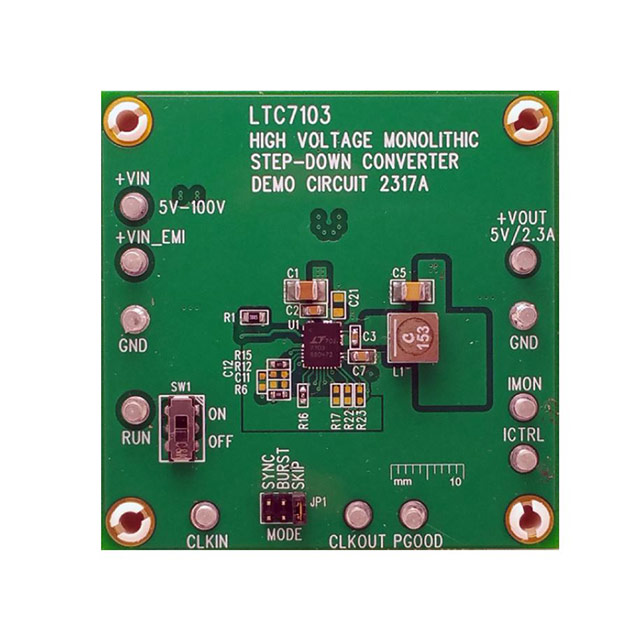

DC2317A
ADI (Analog Devices, Inc.)
Images are for reference only.
See Product Specifications for product details.
Buy DC2317A with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DC2317A with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DC2317A Datasheet| Part Number | DC2317A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | LTC7103 DEMO BOARD VIN = 5V TO 1 |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | DC2317A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Description | LTC7103 DEMO BOARD VIN = 5V TO 1 |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 392 pcs |
| Datasheet | DC2317A.pdf |
| Voltage - Output | 5V |
| Voltage - Input | 5 V ~ 100 V |
| Utilized IC / Part | LTC7103 |
| Supplied Contents | Board(s) |
| Series | - |
| Regulator Topology | Buck |
| Outputs and Type | 1, Non-Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | DC/DC, Step Down |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Frequency - Switching | 400kHz |
| Detailed Description | LTC7103 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Current - Output | 2.3A |
| Board Type | Fully Populated |
| Base Part Number | LTC7103 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 392 pcs of ADI (Analog Devices, Inc.)DC2317A in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
RFQ Email: sales@gfg-tx.com
