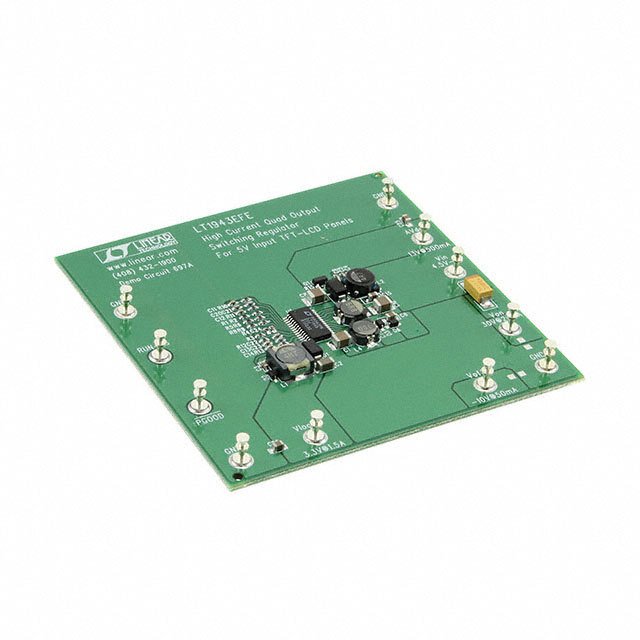

DC697A
ADI (Analog Devices, Inc.)
Images are for reference only.
See Product Specifications for product details.
Buy DC697A with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DC697A with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DC697A Datasheet| Part Number | DC697A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | BOARD EVAL FOR LT1943EFE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | DC697A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Description | BOARD EVAL FOR LT1943EFE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 603 pcs |
| Datasheet | DC697A.pdf |
| Voltage - Output | 3.3V, 13V, 30V, -10V |
| Voltage - Input | 4.5 V ~ 8 V |
| Utilized IC / Part | LT1943 |
| Supplied Contents | Board(s) |
| Series | - |
| Regulator Topology | Boost, Buck |
| Outputs and Type | 4, Non-Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | DC/DC, Step Up or Down |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 1.2MHz |
| Detailed Description | LT1943 - DC/DC, Step Up or Down 4, Non-Isolated Outputs Evaluation Board |
| Current - Output | 1.5A, 500mA, 50mA, 20mA |
| Board Type | Fully Populated |
| Base Part Number | LT1943 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 603 pcs of ADI (Analog Devices, Inc.)DC697A in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
