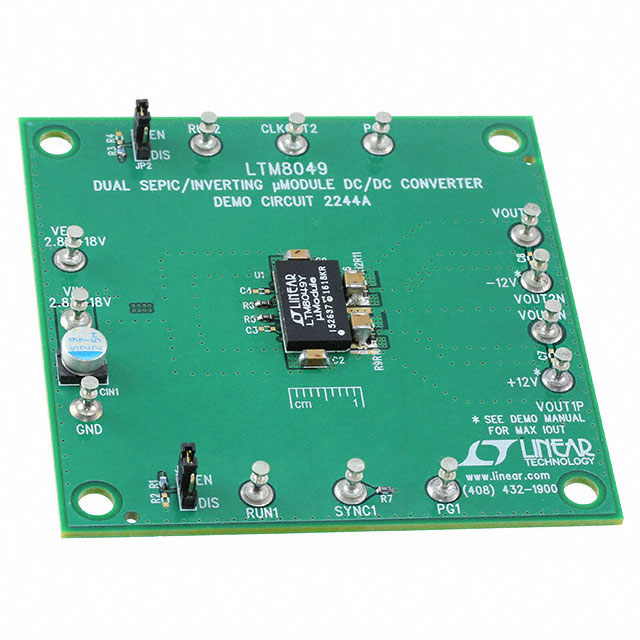

DC2244A
ADI (Analog Devices, Inc.)
Images are for reference only.
See Product Specifications for product details.
Buy DC2244A with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DC2244A with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DC2244A Datasheet| Part Number | DC2244A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | DEMO BOARD FOR LTM8049 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | DC2244A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Description | DEMO BOARD FOR LTM8049 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1287 pcs |
| Datasheet | DC2244A.pdf |
| Voltage - Output | ±12V |
| Voltage - Input | 2.8 V ~ 18 V |
| Utilized IC / Part | LTM8049 |
| Supplied Contents | Board(s) |
| Series | µModule® |
| Regulator Topology | SEPIC, Inverting |
| Outputs and Type | 1, Non-Isolated |
| Other Names | DEMO 2244A |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | DC/DC, Positive and Negative |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 1MHz |
| Detailed Description | LTM8049 µModule® DC/DC, Positive and Negative 1, Non-Isolated Outputs Evaluation Board |
| Current - Output | 1A, 1A |
| Board Type | Fully Populated |
| Base Part Number | LTM8049 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 1287 pcs of ADI (Analog Devices, Inc.)DC2244A in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
