FDM6296
AMI Semiconductor / ON Semiconductor

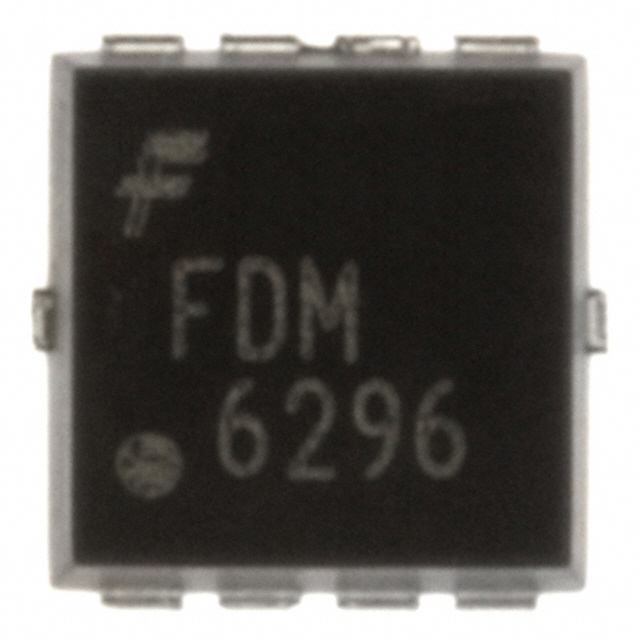

Images are for reference only.
See Product Specifications for product details.
Buy FDM6296 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDM6296 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FDM6296 Datasheet| Part Number | FDM6296 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 30V 11.5A POWER33 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FDM6296 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 30V 11.5A POWER33 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4427 pcs |
| Datasheet | FDM6296.pdf |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-Power33 (3x3) |
| Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 10.5 mOhm @ 11.5A, 10V |
| Power Dissipation (Max) | 2.1W (Ta) |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Other Names | FDM6296-ND FDM6296TR |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2005pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 5V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 11.5A (Ta) 2.1W (Ta) Surface Mount 8-Power33 (3x3) |
| Current - Continuous Drain (Id) @ 25°C | 11.5A (Ta) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 4427 pcs of AMI Semiconductor / ON SemiconductorFDM6296 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
