MC33362DW
AMI Semiconductor / ON Semiconductor

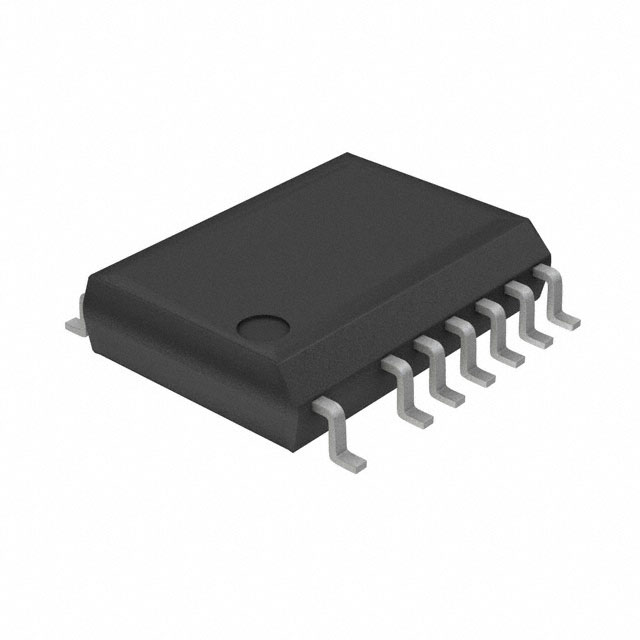

Images are for reference only.
See Product Specifications for product details.
Buy MC33362DW with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy MC33362DW with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload MC33362DW Datasheet| Part Number | MC33362DW |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC SWIT PWM OVP UVLO HV 16SOIC |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | MC33362DW |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - AC DC Converters, Offline Switchers |
| Description | IC SWIT PWM OVP UVLO HV 16SOIC |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5610 pcs |
| Datasheet | MC33362DW.pdf |
| Voltage - Supply (Vcc/Vdd) | 9.5 V ~ 40 V |
| Voltage - Start Up | 14.5V |
| Voltage - Breakdown | 500V |
| Topology | Flyback, Forward |
| Supplier Device Package | 16-SOIC |
| Series | - |
| Packaging | Tube |
| Package / Case | 16-SOIC (0.295", 7.50mm Width), 13 Leads |
| Output Isolation | Isolated |
| Operating Temperature | -25°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Internal Switch(s) | Yes |
| Frequency - Switching | 67.5kHz ~ 285kHz |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Duty Cycle | 50% |
| Detailed Description | Converter Offline Flyback, Forward Topology 67.5kHz ~ 285kHz 16-SOIC |
| Control Features | Frequency Control |
| Base Part Number | MC33362 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 5610 pcs of AMI Semiconductor / ON SemiconductorMC33362DW in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
