FAN501AMPX
AMI Semiconductor / ON Semiconductor

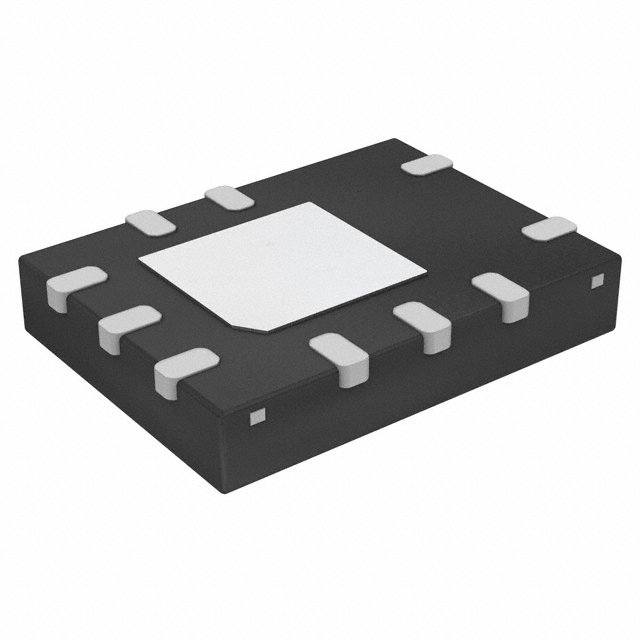

Images are for reference only.
See Product Specifications for product details.
Buy FAN501AMPX with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FAN501AMPX with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FAN501AMPX Datasheet| Part Number | FAN501AMPX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC CTRLR DC-DC MULTIPH MLP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FAN501AMPX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - AC DC Converters, Offline Switchers |
| Description | IC CTRLR DC-DC MULTIPH MLP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 208681 pcs |
| Datasheet | FAN501AMPX.pdf |
| Voltage - Supply (Vcc/Vdd) | 6 V ~ 30 V |
| Voltage - Start Up | 17.5V |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Supplier Device Package | 10-MLP (4x3) |
| Series | WSaver® |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WQFN Exposed Pad |
| Output Isolation | Isolated |
| Other Names | FAN501AMPXTR |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | No |
| Frequency - Switching | 85kHz ~ 140kHz |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Duty Cycle | 68.5% |
| Detailed Description | Converter Offline Flyback Topology 85kHz ~ 140kHz 10-MLP (4x3) |
| Control Features | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 208681 pcs of AMI Semiconductor / ON SemiconductorFAN501AMPX in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
