FDMF5821DC
AMI Semiconductor / ON Semiconductor

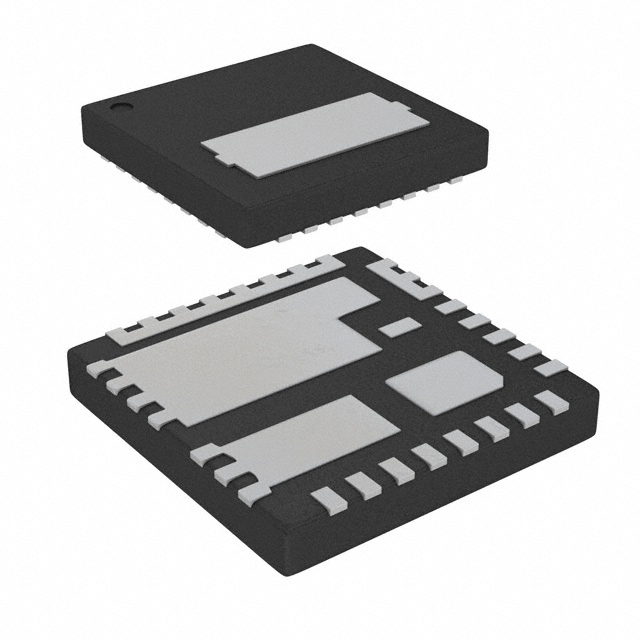

Images are for reference only.
See Product Specifications for product details.
Buy FDMF5821DC with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDMF5821DC with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FDMF5821DC Datasheet| Part Number | FDMF5821DC |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC SPS HALF-BRIDGE DRVR 31PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FDMF5821DC |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - Full, Half-Bridge Drivers |
| Description | IC SPS HALF-BRIDGE DRVR 31PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48122 pcs |
| Datasheet | FDMF5821DC.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Load | 4.5 V ~ 16 V |
| Technology | UMOS |
| Supplier Device Package | 31-PQFN (5x5) |
| Series | PowerTrench®, SyncFET™ |
| Rds On (Typ) | 470 mOhm LS, 680 mOhm HS |
| Packaging | Cut Tape (CT) |
| Package / Case | 31-PowerWFQFN |
| Output Configuration | Half Bridge |
| Other Names | FDMF5821DCCT |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | PWM |
| Features | Bootstrap Circuit, Latch Function, Status Flag |
| Fault Protection | Over Temperature, UVLO |
| Detailed Description | Half Bridge Driver Synchronous Buck Converters UMOS 31-PQFN (5x5) |
| Current - Peak Output | - |
| Current - Output / Channel | 60A |
| Applications | Synchronous Buck Converters |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 48122 pcs of AMI Semiconductor / ON SemiconductorFDMF5821DC in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
