NCP1397ADR2G
AMI Semiconductor / ON Semiconductor

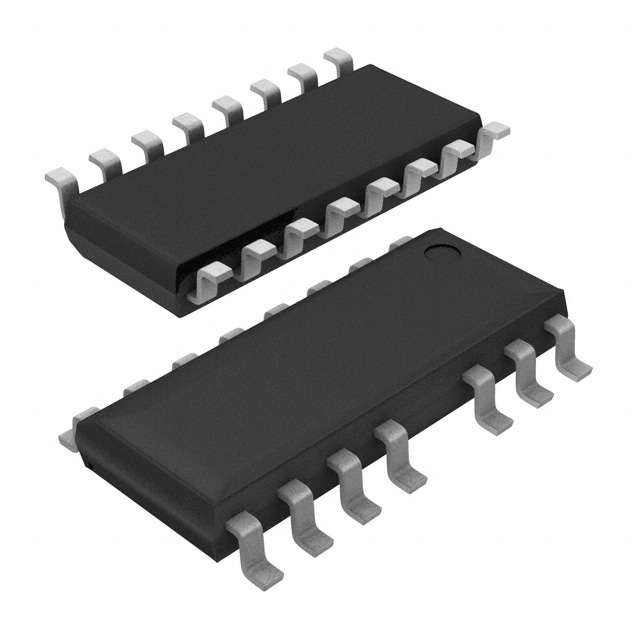

Images are for reference only.
See Product Specifications for product details.
Buy NCP1397ADR2G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NCP1397ADR2G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NCP1397ADR2G Datasheet| Part Number | NCP1397ADR2G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC REG CTRLR ISO PWM 16-SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NCP1397ADR2G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - AC DC Converters, Offline Switchers |
| Description | IC REG CTRLR ISO PWM 16-SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 100501 pcs |
| Datasheet | NCP1397ADR2G.pdf |
| Voltage - Supply (Vcc/Vdd) | 9.5 V ~ 20 V |
| Voltage - Start Up | 10.5V |
| Voltage - Breakdown | - |
| Topology | Half-Bridge |
| Supplier Device Package | 16-SOIC |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 15 Leads |
| Output Isolation | Isolated |
| Other Names | NCP1397ADR2G-ND NCP1397ADR2GOSTR |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | No |
| Frequency - Switching | 60kHz ~ 500kHz |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Duty Cycle | 50% |
| Detailed Description | Converter Offline Half-Bridge Topology 60kHz ~ 500kHz 16-SOIC |
| Control Features | Frequency Control |
| Base Part Number | NCP1397 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 100501 pcs of AMI Semiconductor / ON SemiconductorNCP1397ADR2G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
