FDMF3039
AMI Semiconductor / ON Semiconductor

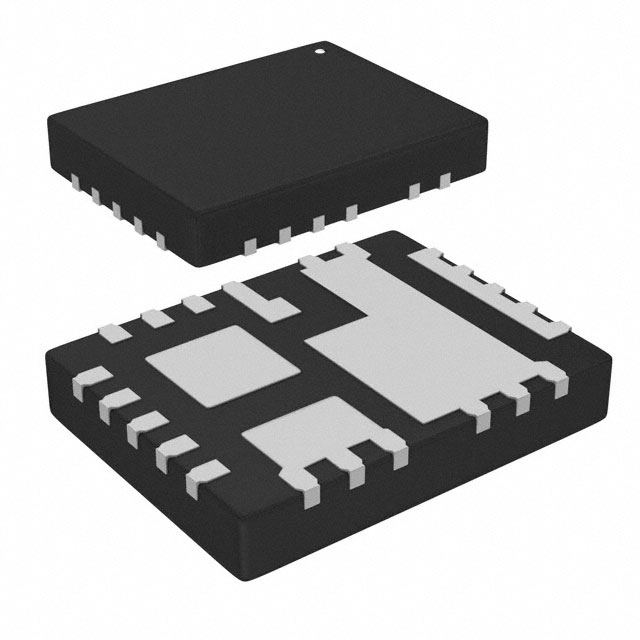

Images are for reference only.
See Product Specifications for product details.
Buy FDMF3039 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDMF3039 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FDMF3039 Datasheet| Part Number | FDMF3039 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC HALF-BRIDGE DRVR PWM 22PQFN |
| Lead Free Status / RoHS Status |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FDMF3039 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - Full, Half-Bridge Drivers |
| Description | IC HALF-BRIDGE DRVR PWM 22PQFN |
| Lead Free Status / RoHS Status | |
| Quantity Available | 80381 pcs |
| Datasheet | FDMF3039.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Load | 4.5 V ~ 24 V |
| Technology | Power MOSFET |
| Supplier Device Package | 22-PQFN (3.5x4.5) |
| Series | - |
| Rds On (Typ) | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 22-PowerWFQFN |
| Output Configuration | Half Bridge |
| Other Names | FDMF3039CT |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Load Type | Inductive |
| Interface | PWM |
| Features | Bootstrap Circuit, Diode Emulation |
| Fault Protection | Shoot-Through, UVLO |
| Detailed Description | Half Bridge Driver DC-DC Converters, Synchronous Buck Converter Power MOSFET 22-PQFN (3.5x4.5) |
| Current - Peak Output | - |
| Current - Output / Channel | 30A |
| Applications | DC-DC Converters, Synchronous Buck Converter |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 80381 pcs of AMI Semiconductor / ON SemiconductorFDMF3039 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
