LB11822-E
AMI Semiconductor / ON Semiconductor

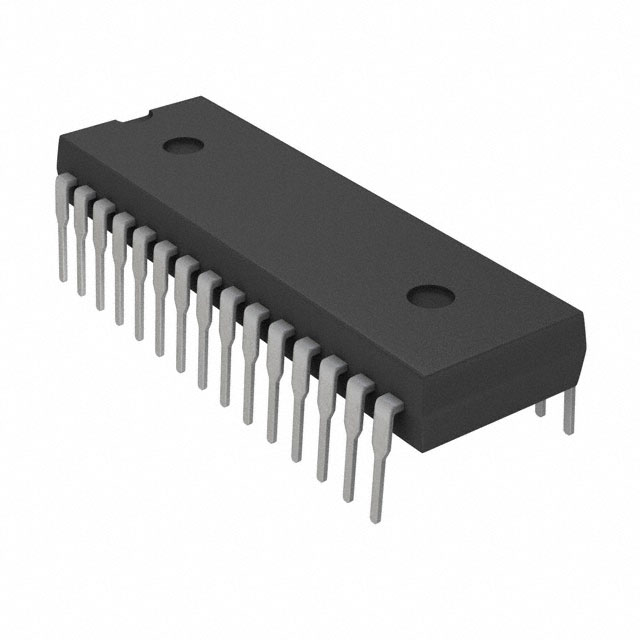

Images are for reference only.
See Product Specifications for product details.
Buy LB11822-E with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy LB11822-E with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload LB11822-E Datasheet| Part Number | LB11822-E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC MOTOR DRIVER PWM 30DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | LB11822-E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - Motor Drivers, Controllers |
| Description | IC MOTOR DRIVER PWM 30DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4727 pcs |
| Datasheet | LB11822-E.pdf |
| Voltage - Supply | 9.5 V ~ 28 V |
| Voltage - Load | 9.5 V ~ 28 V |
| Technology | - |
| Supplier Device Package | 30-PDIP |
| Step Resolution | - |
| Series | - |
| Packaging | Tube |
| Package / Case | 30-SDIP (0.400", 10.16mm) |
| Output Configuration | Half Bridge (3) |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Mounting Type | Through Hole |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | PWM |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description | Motor Driver PWM 30-PDIP |
| Current - Output | 3.1A |
| Applications | General Purpose |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 4727 pcs of AMI Semiconductor / ON SemiconductorLB11822-E in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
