FDMS003N08C
AMI Semiconductor / ON Semiconductor

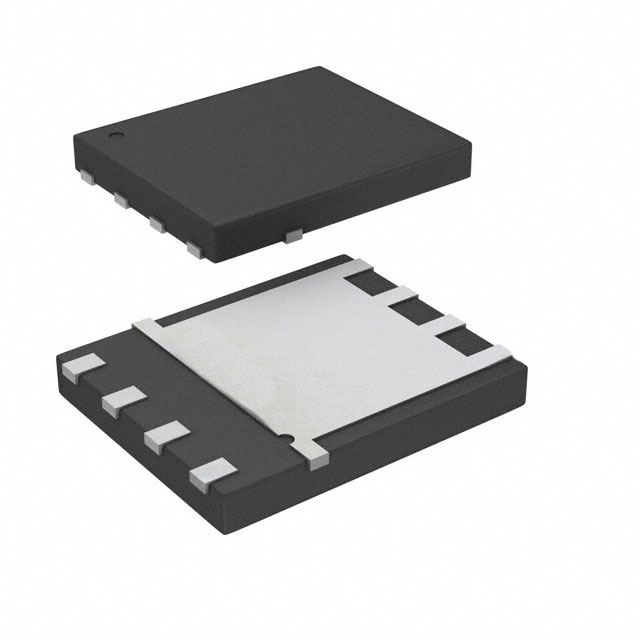

Images are for reference only.
See Product Specifications for product details.
Buy FDMS003N08C with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDMS003N08C with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FDMS003N08C Datasheet| Part Number | FDMS003N08C |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | FET ENGR DEV-NOT REL |
| Lead Free Status / RoHS Status |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FDMS003N08C |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | FET ENGR DEV-NOT REL |
| Lead Free Status / RoHS Status | |
| Quantity Available | 25213 pcs |
| Datasheet | FDMS003N08C.pdf |
| Vgs(th) (Max) @ Id | 4V @ 310µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | Power56 |
| Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 3.1 mOhm @ 56A, 10V |
| Power Dissipation (Max) | 2.7W (Ta), 125W (Tc) |
| Package / Case | 8-PowerTDFN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Lead Free Status | Lead free |
| Input Capacitance (Ciss) (Max) @ Vds | 5350pF @ 40V |
| Gate Charge (Qg) (Max) @ Vgs | 73nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Drain to Source Voltage (Vdss) | 80V |
| Detailed Description | N-Channel 80V 22A (Ta), 147A (Tc) 2.7W (Ta), 125W (Tc) Surface Mount Power56 |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta), 147A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 25213 pcs of AMI Semiconductor / ON SemiconductorFDMS003N08C in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
