NSR20F40NXT5G
AMI Semiconductor / ON Semiconductor

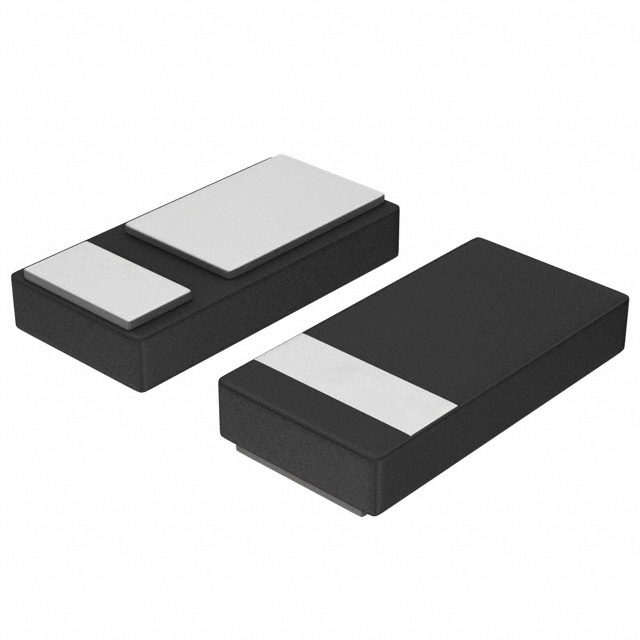

Images are for reference only.
See Product Specifications for product details.
Buy NSR20F40NXT5G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NSR20F40NXT5G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NSR20F40NXT5G Datasheet| Part Number | NSR20F40NXT5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | DIODE SCHOTTKY 40V 2A 2DSN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NSR20F40NXT5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Diodes - Rectifiers - Single |
| Description | DIODE SCHOTTKY 40V 2A 2DSN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 309665 pcs |
| Datasheet | NSR20F40NXT5G.pdf |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 2A |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Supplier Device Package | 2-DSN (1.6x.80) |
| Speed | Fast Recovery = 200mA (Io) |
| Series | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 2-XDFN |
| Other Names | NSR20F40NXT5GOSCT |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky |
| Detailed Description | Diode Schottky 40V 2A (DC) Surface Mount 2-DSN (1.6x.80) |
| Current - Reverse Leakage @ Vr | 150µA @ 40V |
| Current - Average Rectified (Io) | 2A (DC) |
| Capacitance @ Vr, F | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 309665 pcs of AMI Semiconductor / ON SemiconductorNSR20F40NXT5G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
