BAT54S
AMI Semiconductor / ON Semiconductor

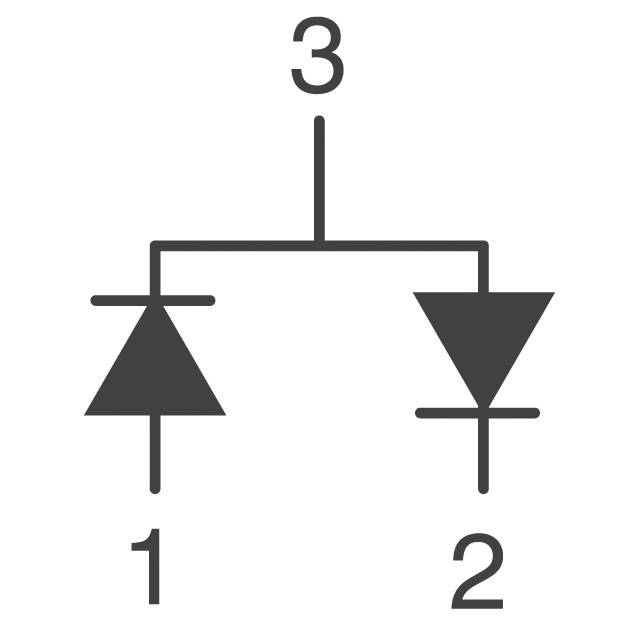

Images are for reference only.
See Product Specifications for product details.
Buy BAT54S with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy BAT54S with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload BAT54S Datasheet| Part Number | BAT54S |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | DIODE ARRAY SCHOTTKY 30V SOT23-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | BAT54S |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Diodes - Rectifiers - Arrays |
| Description | DIODE ARRAY SCHOTTKY 30V SOT23-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1609680 pcs |
| Datasheet | BAT54S.pdf |
| Voltage - Forward (Vf) (Max) @ If | 800mV @ 100mA |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Series | - |
| Reverse Recovery Time (trr) | 5ns |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Other Names | BAT54SFSTR |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Series Connection |
| Detailed Description | Diode Array 1 Pair Series Connection Schottky 30V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3 |
| Current - Reverse Leakage @ Vr | 2µA @ 25V |
| Current - Average Rectified (Io) (per Diode) | 200mA |
| Base Part Number | BAT54S |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 1609680 pcs of AMI Semiconductor / ON SemiconductorBAT54S in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
