H11L1SR2VM
AMI Semiconductor / ON Semiconductor

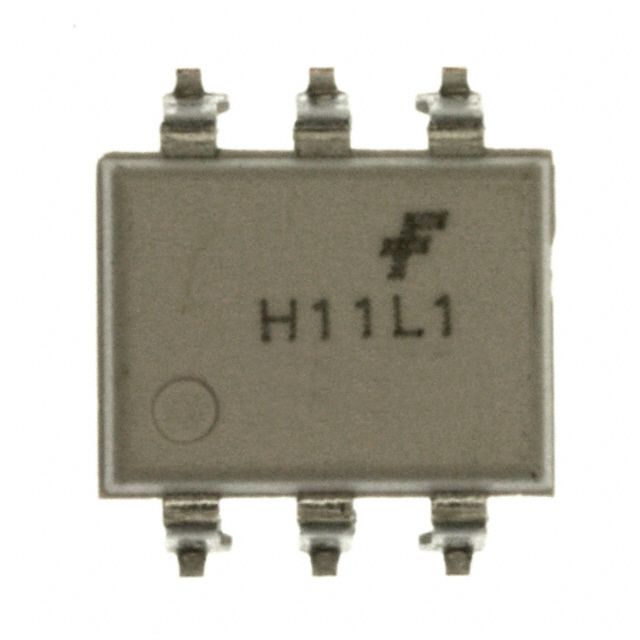

Images are for reference only.
See Product Specifications for product details.
Buy H11L1SR2VM with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy H11L1SR2VM with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload H11L1SR2VM Datasheet| Part Number | H11L1SR2VM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 4.17KV OPN COLL 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | H11L1SR2VM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Optoisolators - Logic Output |
| Description | OPTOISO 4.17KV OPN COLL 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 149673 pcs |
| Datasheet | H11L1SR2VM.pdf |
| Voltage - Supply | 3 V ~ 15 V |
| Voltage - Isolation | 4170Vrms |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Supplier Device Package | 6-SMD |
| Series | - |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Propagation Delay tpLH / tpHL (Max) | 4µs, 4µs |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Gull Wing |
| Output Type | Open Collector |
| Other Names | H11L1SR2VMTR |
| Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC |
| Detailed Description | Logic Output Optoisolator 1MHz Open Collector 4170Vrms 1 Channel 6-SMD |
| Data Rate | 1MHz |
| Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 30mA |
| Common Mode Transient Immunity (Min) | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 149673 pcs of AMI Semiconductor / ON SemiconductorH11L1SR2VM in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
