NTNS3190NZT5G
AMI Semiconductor / ON Semiconductor

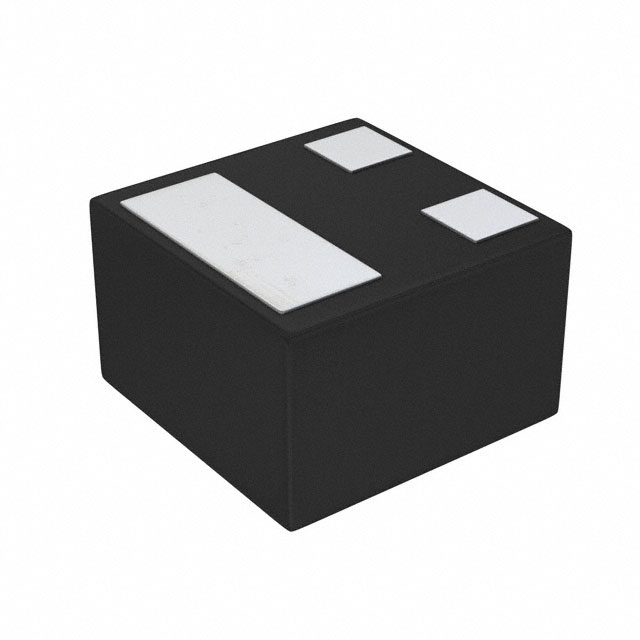

Images are for reference only.
See Product Specifications for product details.
Buy NTNS3190NZT5G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NTNS3190NZT5G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NTNS3190NZT5G Datasheet| Part Number | NTNS3190NZT5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 20V 0.224A XLLGA3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NTNS3190NZT5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 20V 0.224A XLLGA3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 223765 pcs |
| Datasheet | NTNS3190NZT5G.pdf |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±8V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 3-XLLGA (0.62x0.62) |
| Series | - |
| Rds On (Max) @ Id, Vgs | 1.4 Ohm @ 100mA, 4.5V |
| Power Dissipation (Max) | 120mW (Ta) |
| Packaging | Original-Reel® |
| Package / Case | 3-XFDFN |
| Other Names | NTNS3190NZT5GOSDKR |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 15.8pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 0.7nC @ 4.5V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | N-Channel 20V 224mA (Ta) 120mW (Ta) Surface Mount 3-XLLGA (0.62x0.62) |
| Current - Continuous Drain (Id) @ 25°C | 224mA (Ta) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 223765 pcs of AMI Semiconductor / ON SemiconductorNTNS3190NZT5G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
