FAN7601GX
AMI Semiconductor / ON Semiconductor

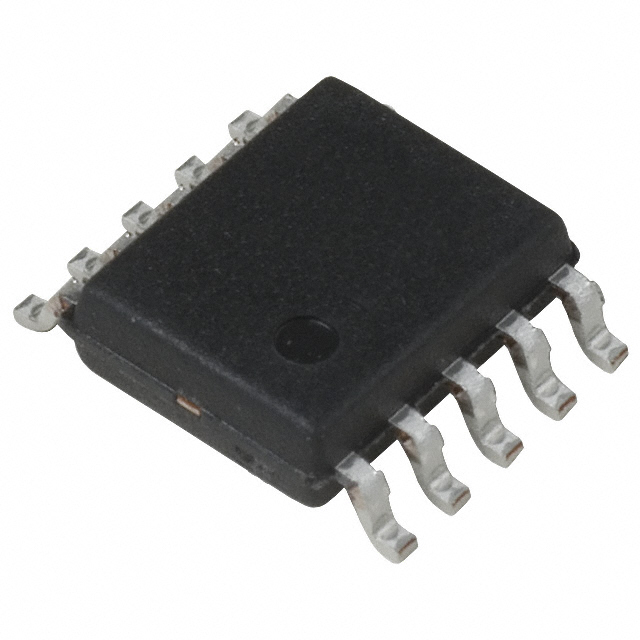

Images are for reference only.
See Product Specifications for product details.
Buy FAN7601GX with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FAN7601GX with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FAN7601GX Datasheet| Part Number | FAN7601GX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC PWM CTLR GREEN MODE 10SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FAN7601GX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - AC DC Converters, Offline Switchers |
| Description | IC PWM CTLR GREEN MODE 10SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4803 pcs |
| Datasheet | FAN7601GX.pdf |
| Voltage - Supply (Vcc/Vdd) | 8 V ~ 20 V |
| Voltage - Start Up | 12V |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Supplier Device Package | 10-SSOP |
| Series | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 10-SOP (0.154", 3.90mm Width) |
| Output Isolation | - |
| Other Names | FAN7601GX_NLCT FAN7601GX_NLCT-ND FAN7601GXCT |
| Operating Temperature | -25°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes |
| Frequency - Switching | Up to 300kHz |
| Fault Protection | Over Temperature, Over Voltage |
| Duty Cycle | 95% |
| Detailed Description | Converter Offline Flyback Topology Up to 300kHz 10-SSOP |
| Control Features | Frequency Control, Soft Start |
| Base Part Number | FAN7601 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 4803 pcs of AMI Semiconductor / ON SemiconductorFAN7601GX in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
