LV8804FV-MPB-H
AMI Semiconductor / ON Semiconductor

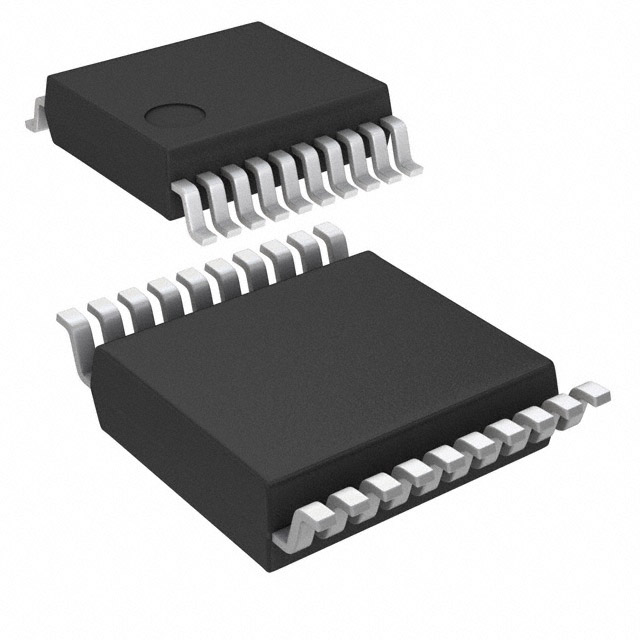

Images are for reference only.
See Product Specifications for product details.
Buy LV8804FV-MPB-H with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy LV8804FV-MPB-H with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload LV8804FV-MPB-H Datasheet| Part Number | LV8804FV-MPB-H |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC MOTOR DRIVER PWM 20SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | LV8804FV-MPB-H |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - Motor Drivers, Controllers |
| Description | IC MOTOR DRIVER PWM 20SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5270 pcs |
| Datasheet | LV8804FV-MPB-H.pdf |
| Voltage - Supply | 6 V ~ 15 V |
| Voltage - Load | 6 V ~ 15 V |
| Technology | Bi-CMOS |
| Supplier Device Package | 20-SSOPJ |
| Step Resolution | - |
| Series | - |
| Packaging | Tape & Box (TB) |
| Package / Case | 20-LFSOP (0.173", 4.40mm Width) |
| Output Configuration | Half Bridge (3) |
| Other Names | LV8804FV-MPB-H-ND LV8804FV-MPB-HOSTB LV8804FVMPBH |
| Operating Temperature | -30°C ~ 95°C (TA) |
| Mounting Type | Surface Mount |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | On/Off |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description | Motor Driver Bi-CMOS On/Off 20-SSOPJ |
| Current - Output | 1.2A |
| Base Part Number | LV8804 |
| Applications | General Purpose |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 5270 pcs of AMI Semiconductor / ON SemiconductorLV8804FV-MPB-H in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
