NCP5680MUTXG
AMI Semiconductor / ON Semiconductor

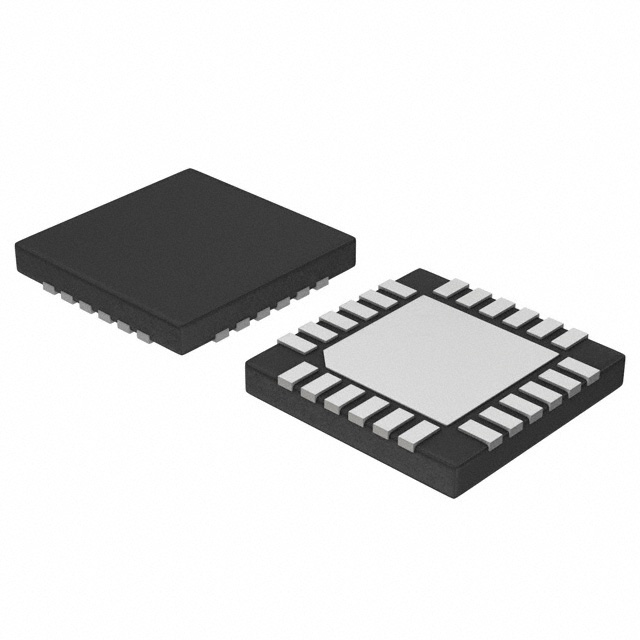

Images are for reference only.
See Product Specifications for product details.
Buy NCP5680MUTXG with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NCP5680MUTXG with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NCP5680MUTXG Datasheet| Part Number | NCP5680MUTXG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC LED DRIVER CTRLR 400MA 24UQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NCP5680MUTXG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - LED Drivers |
| Description | IC LED DRIVER CTRLR 400MA 24UQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5495 pcs |
| Datasheet | NCP5680MUTXG.pdf |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 4.5 V ~ 5.3 V |
| Type | DC DC Controller |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 24-UQFN (3.5x3.5) |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-UFQFN Exposed Pad |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 2 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | No |
| Frequency | 1MHz |
| Dimming | - |
| Detailed Description | LED Driver IC 2 Output DC DC Controller Switched Capacitor (Charge Pump) 24-UQFN (3.5x3.5) |
| Current - Output / Channel | - |
| Base Part Number | NCP5680 |
| Applications | Camera Flash |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 5495 pcs of AMI Semiconductor / ON SemiconductorNCP5680MUTXG in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
