UC2844BN
AMI Semiconductor / ON Semiconductor

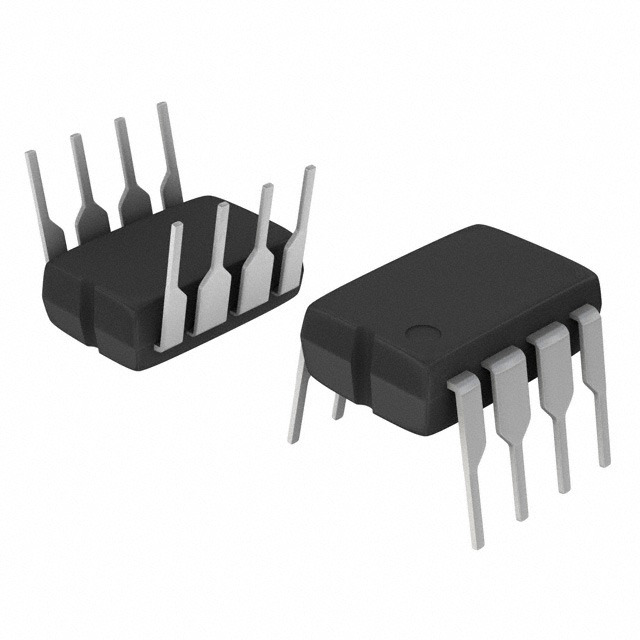

Images are for reference only.
See Product Specifications for product details.
Buy UC2844BN with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy UC2844BN with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload UC2844BN Datasheet| Part Number | UC2844BN |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC REG CTRLR PWM CM 8-DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | UC2844BN |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Description | IC REG CTRLR PWM CM 8-DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5189 pcs |
| Datasheet | UC2844BN.pdf |
| Voltage - Supply (Vcc/Vdd) | 10 V ~ 36 V |
| Topology | Boost, Flyback |
| Synchronous Rectifier | No |
| Supplier Device Package | 8-DIP |
| Series | - |
| Serial Interfaces | - |
| Packaging | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Output Type | Transistor Driver |
| Output Phases | 1 |
| Output Configuration | Positive |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Number of Outputs | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Function | Step-Up, Step-Up/Step-Down |
| Frequency - Switching | Up to 500kHz |
| Duty Cycle (Max) | 48% |
| Detailed Description | Boost, Flyback Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-DIP |
| Control Features | Frequency Control |
| Clock Sync | No |
| Base Part Number | UC284*B |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 5189 pcs of AMI Semiconductor / ON SemiconductorUC2844BN in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
