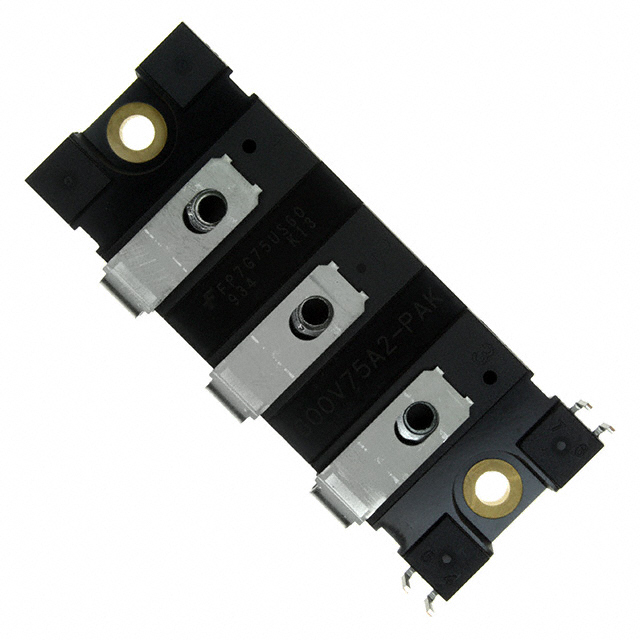

FP7G75US60
AMI Semiconductor / ON Semiconductor
Images are for reference only.
See Product Specifications for product details.
Buy FP7G75US60 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FP7G75US60 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FP7G75US60 Datasheet| Part Number | FP7G75US60 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MODULE IGBT 600V 75A EPM7 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FP7G75US60 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - IGBTs - Modules |
| Description | MODULE IGBT 600V 75A EPM7 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5851 pcs |
| Datasheet | FP7G75US60.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 75A |
| Supplier Device Package | EPM7 |
| Series | Power-SPM™ |
| Power - Max | 310W |
| Package / Case | EPM7 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| NTC Thermistor | No |
| Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 4.515nF @ 30V |
| Input | Standard |
| IGBT Type | - |
| Detailed Description | IGBT Module Half Bridge 600V 75A 310W Chassis Mount EPM7 |
| Current - Collector Cutoff (Max) | 250µA |
| Current - Collector (Ic) (Max) | 75A |
| Configuration | Half Bridge |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 5851 pcs of AMI Semiconductor / ON SemiconductorFP7G75US60 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
