NSBC123JDP6T5G
AMI Semiconductor / ON Semiconductor

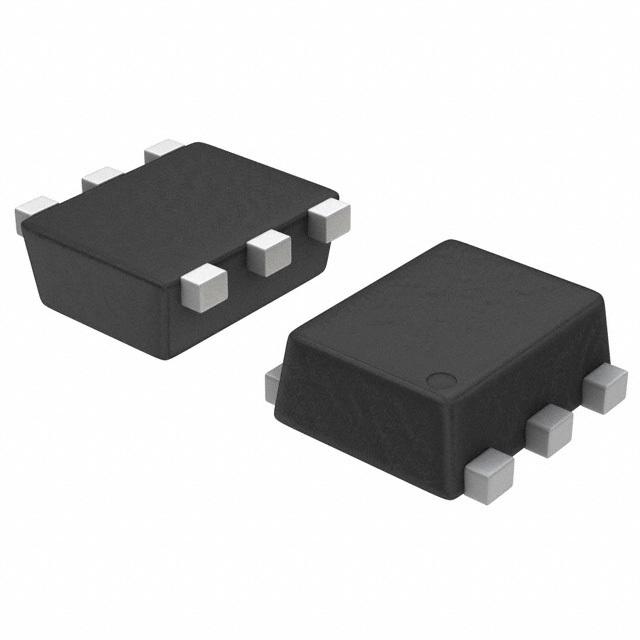

Images are for reference only.
See Product Specifications for product details.
Buy NSBC123JDP6T5G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NSBC123JDP6T5G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NSBC123JDP6T5G Datasheet| Part Number | NSBC123JDP6T5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS 2NPN PREBIAS 0.339W SOT963 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NSBC123JDP6T5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Description | TRANS 2NPN PREBIAS 0.339W SOT963 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1117183 pcs |
| Datasheet | NSBC123JDP6T5G.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Supplier Device Package | SOT-963 |
| Series | - |
| Resistor - Emitter Base (R2) | 47 kOhms |
| Resistor - Base (R1) | 2.2 kOhms |
| Power - Max | 339mW |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-963 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | - |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 50V 100mA 339mW Surface Mount SOT-963 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Current - Collector Cutoff (Max) | 500nA |
| Current - Collector (Ic) (Max) | 100mA |
| Base Part Number | NSBC1* |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 1117183 pcs of AMI Semiconductor / ON SemiconductorNSBC123JDP6T5G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
