NLAS5223BMNR2G
AMI Semiconductor / ON Semiconductor

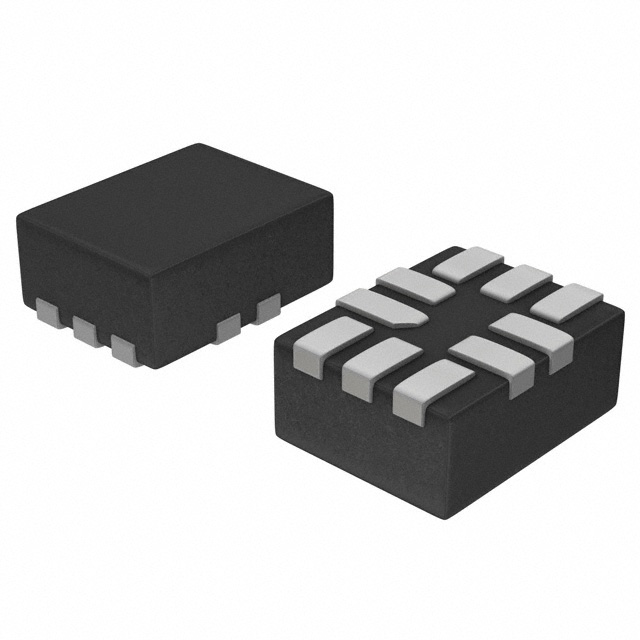

Images are for reference only.
See Product Specifications for product details.
Buy NLAS5223BMNR2G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NLAS5223BMNR2G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NLAS5223BMNR2G Datasheet| Part Number | NLAS5223BMNR2G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC SWITCH DUAL SPDT 10WQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NLAS5223BMNR2G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Description | IC SWITCH DUAL SPDT 10WQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 225071 pcs |
| Datasheet | NLAS5223BMNR2G.pdf |
| Voltage - Supply, Single (V+) | 1.65 V ~ 4.5 V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns |
| Switch Circuit | SPDT |
| Supplier Device Package | 10-WQFN (1.4x1.8) |
| Series | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 10-WFQFN |
| Other Names | NLAS5223BMNR2GOSCT |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 350 mOhm |
| Number of Circuits | 2 |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2 Circuit IC Switch 2:1 350 mOhm 10-WQFN (1.4x1.8) |
| Current - Leakage (IS(off)) (Max) | 500nA |
| Crosstalk | -70dB @ 100kHz |
| Charge Injection | 38pC |
| Channel-to-Channel Matching (ΔRon) | 50 mOhm (Max) |
| Channel Capacitance (CS(off), CD(off)) | 60pF |
| Base Part Number | NLAS5223 |
| -3db Bandwidth | 19MHz |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 225071 pcs of AMI Semiconductor / ON SemiconductorNLAS5223BMNR2G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
