NSR10F30NXT5G
AMI Semiconductor / ON Semiconductor

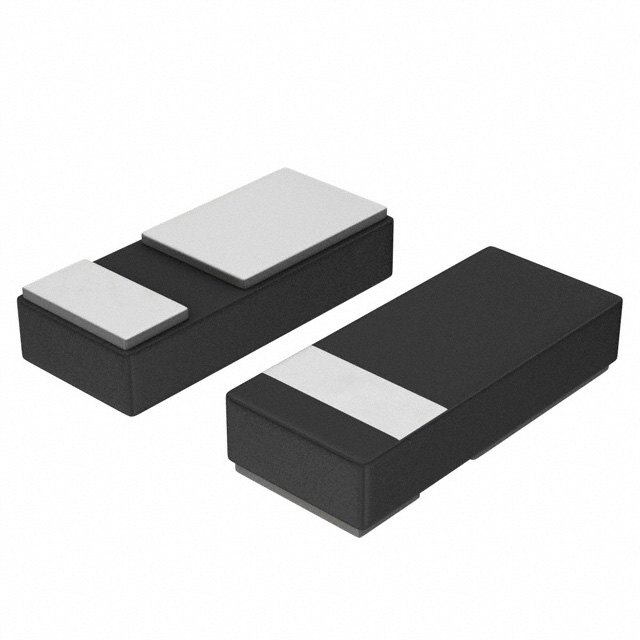

Images are for reference only.
See Product Specifications for product details.
Buy NSR10F30NXT5G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NSR10F30NXT5G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NSR10F30NXT5G Datasheet| Part Number | NSR10F30NXT5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | DIODE SCHOTTKY 30V 1A 2DSN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NSR10F30NXT5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Diodes - Rectifiers - Single |
| Description | DIODE SCHOTTKY 30V 1A 2DSN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 578381 pcs |
| Datasheet | NSR10F30NXT5G.pdf |
| Voltage - Forward (Vf) (Max) @ If | 470mV @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Supplier Device Package | 2-DSN (1.4x0.6) |
| Speed | Fast Recovery = 200mA (Io) |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XDFN |
| Other Names | NSR10F30NXT5G-ND NSR10F30NXT5GOSTR |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky |
| Detailed Description | Diode Schottky 30V 1A (DC) Surface Mount 2-DSN (1.4x0.6) |
| Current - Reverse Leakage @ Vr | 100µA @ 30V |
| Current - Average Rectified (Io) | 1A (DC) |
| Capacitance @ Vr, F | - |
| Base Part Number | NSR10F30 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 578381 pcs of AMI Semiconductor / ON SemiconductorNSR10F30NXT5G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
