FDMQ8203
AMI Semiconductor / ON Semiconductor

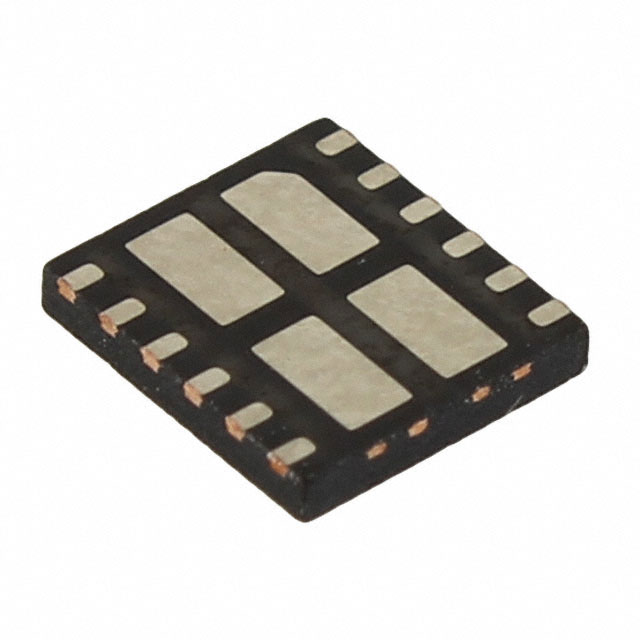

Images are for reference only.
See Product Specifications for product details.
Buy FDMQ8203 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDMQ8203 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FDMQ8203 Datasheet| Part Number | FDMQ8203 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET 2N/2P-CH 100V/80V 12-MLP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FDMQ8203 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Arrays |
| Description | MOSFET 2N/2P-CH 100V/80V 12-MLP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56618 pcs |
| Datasheet | FDMQ8203.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 12-MLP (5x4.5) |
| Series | GreenBridge™ PowerTrench® |
| Rds On (Max) @ Id, Vgs | 110 mOhm @ 3A, 10V |
| Power - Max | 2.5W |
| Packaging | Cut Tape (CT) |
| Package / Case | 12-WDFN Exposed Pad |
| Other Names | FDMQ8203CT |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 210pF @ 50V |
| Gate Charge (Qg) (Max) @ Vgs | 5nC @ 10V |
| FET Type | 2 N and 2 P-Channel (H-Bridge) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 100V, 80V |
| Detailed Description | Mosfet Array 2 N and 2 P-Channel (H-Bridge) 100V, 80V 3.4A, 2.6A 2.5W Surface Mount 12-MLP (5x4.5) |
| Current - Continuous Drain (Id) @ 25°C | 3.4A, 2.6A |
| Base Part Number | FDMQ8203 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 56618 pcs of AMI Semiconductor / ON SemiconductorFDMQ8203 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
