1N5821
AMI Semiconductor / ON Semiconductor

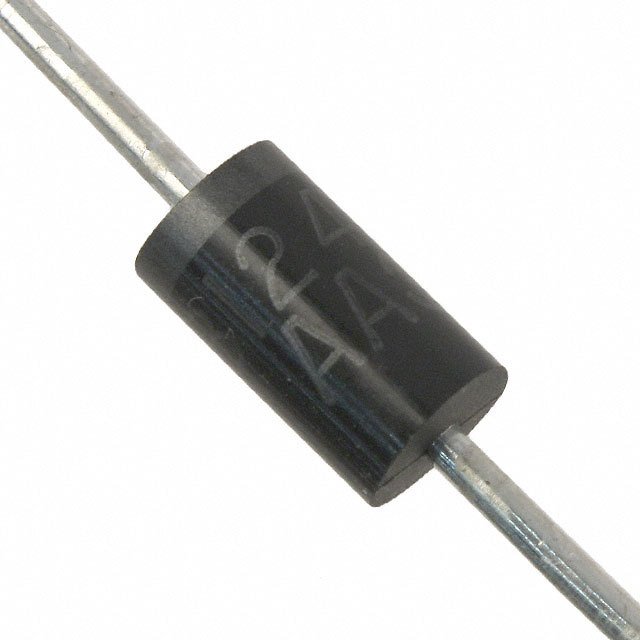

Images are for reference only.
See Product Specifications for product details.
Buy 1N5821 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1N5821 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 1N5821 Datasheet| Part Number | 1N5821 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | DIODE SCHOTTKY 30V 3A DO201AD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | 1N5821 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Diodes - Rectifiers - Single |
| Description | DIODE SCHOTTKY 30V 3A DO201AD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 197070 pcs |
| Datasheet | 1N5821.pdf |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 3A |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Supplier Device Package | DO-201AD |
| Speed | Fast Recovery = 200mA (Io) |
| Series | - |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-201AD, Axial |
| Other Names | 1N5821FSCT |
| Operating Temperature - Junction | -65°C ~ 125°C |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky |
| Detailed Description | Diode Schottky 30V 3A Through Hole DO-201AD |
| Current - Reverse Leakage @ Vr | 500µA @ 30V |
| Current - Average Rectified (Io) | 3A |
| Capacitance @ Vr, F | 190pF @ 4V, 1MHz |
| Base Part Number | 1N5821 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 197070 pcs of AMI Semiconductor / ON Semiconductor1N5821 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
