2SJ661-1E
AMI Semiconductor / ON Semiconductor

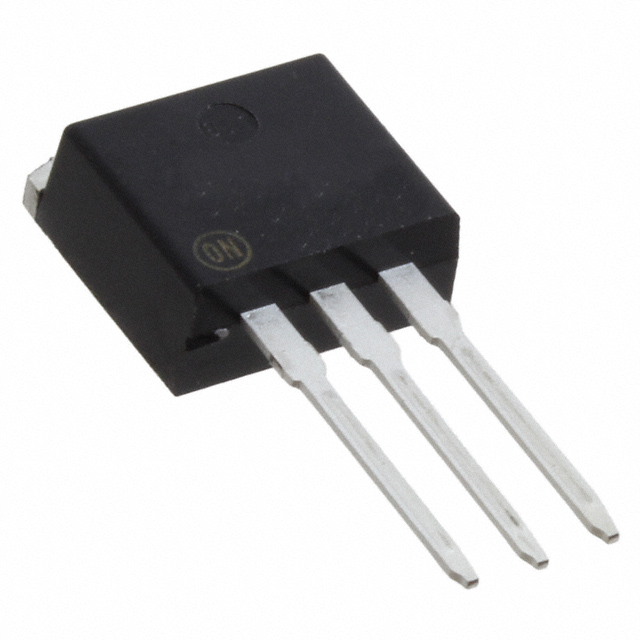

Images are for reference only.
See Product Specifications for product details.
Buy 2SJ661-1E with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2SJ661-1E with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 2SJ661-1E Datasheet| Part Number | 2SJ661-1E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET P-CH 60V 38A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | 2SJ661-1E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET P-CH 60V 38A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86527 pcs |
| Datasheet | 2SJ661-1E.pdf |
| Vgs(th) (Max) @ Id | - |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-262-3 |
| Series | - |
| Rds On (Max) @ Id, Vgs | 39 mOhm @ 19A, 10V |
| Power Dissipation (Max) | 1.65W (Ta), 65W (Tc) |
| Packaging | Tube |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 4360pF @ 20V |
| Gate Charge (Qg) (Max) @ Vgs | 80nC @ 10V |
| FET Type | P-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Drain to Source Voltage (Vdss) | 60V |
| Detailed Description | P-Channel 60V 38A (Ta) 1.65W (Ta), 65W (Tc) Through Hole TO-262-3 |
| Current - Continuous Drain (Id) @ 25°C | 38A (Ta) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 86527 pcs of AMI Semiconductor / ON Semiconductor2SJ661-1E in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
