CSPEMI202AG
AMI Semiconductor / ON Semiconductor

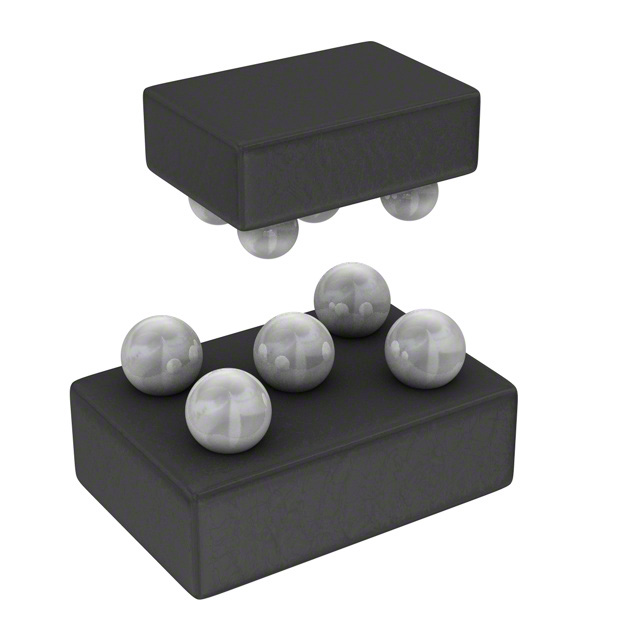

Images are for reference only.
See Product Specifications for product details.
Buy CSPEMI202AG with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy CSPEMI202AG with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload CSPEMI202AG Datasheet| Part Number | CSPEMI202AG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | FILTER RC(PI) 68 OHM/47PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | CSPEMI202AG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | EMI/RFI Filters (LC, RC Networks) |
| Description | FILTER RC(PI) 68 OHM/47PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 470624 pcs |
| Datasheet | CSPEMI202AG.pdf |
| Voltage - Rated | - |
| Values | R = 68 Ohms, C = 47pF |
| Type | Low Pass |
| Technology | RC (Pi) |
| Size / Dimension | 0.056" L x 0.037" W (1.41mm x 0.93mm) |
| Series | - |
| Resistance - Channel (Ohms) | 68 |
| Packaging | Cut Tape (CT) |
| Package / Case | 5-WFBGA, WLCSP |
| Other Names | CSPEMI202AGOSCT |
| Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 2 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.026" (0.65mm) |
| Filter Order | 2nd |
| ESD Protection | Yes |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 68 Ohms, C = 47pF 5-WFBGA, WLCSP |
| Center / Cutoff Frequency | 60MHz (Cutoff) |
| Attenuation Value | 35dB @ 800MHz ~ 2.7GHz |
| Applications | Audio |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 470624 pcs of AMI Semiconductor / ON SemiconductorCSPEMI202AG in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
