NGTG12N60TF1G
AMI Semiconductor / ON Semiconductor

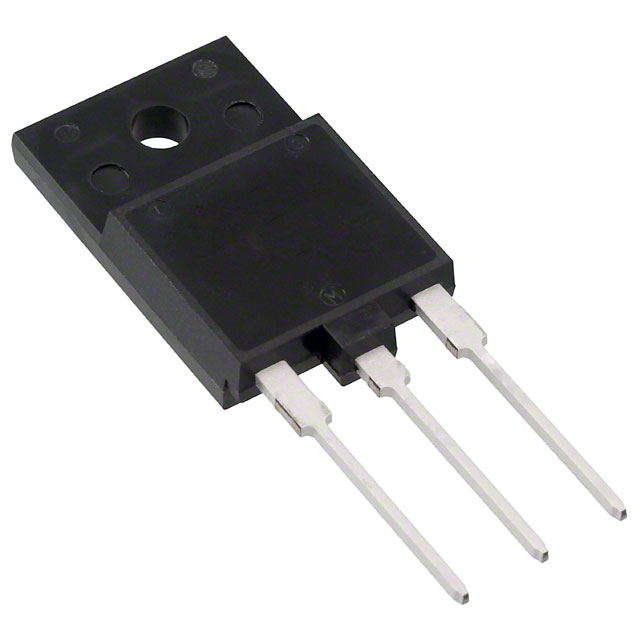

Images are for reference only.
See Product Specifications for product details.
Buy NGTG12N60TF1G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NGTG12N60TF1G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NGTG12N60TF1G Datasheet| Part Number | NGTG12N60TF1G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IGBT 600V 24A 54W TO-3PF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NGTG12N60TF1G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT 600V 24A 54W TO-3PF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89561 pcs |
| Datasheet | NGTG12N60TF1G.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 12A |
| Test Condition | 300V, 15A, 30 Ohm, 15V |
| Td (on/off) @ 25°C | 55ns/200ns |
| Switching Energy | - |
| Series | - |
| Power - Max | 54W |
| Packaging | Tube |
| Package / Case | TO-3P-3 Full Pack |
| Other Names | NGTG12N60TF1GOS |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | - |
| Gate Charge | 84nC |
| Detailed Description | IGBT 600V 24A 54W Through Hole |
| Current - Collector Pulsed (Icm) | 88A |
| Current - Collector (Ic) (Max) | 24A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 89561 pcs of AMI Semiconductor / ON SemiconductorNGTG12N60TF1G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
