NTHS4111PT1G
AMI Semiconductor / ON Semiconductor

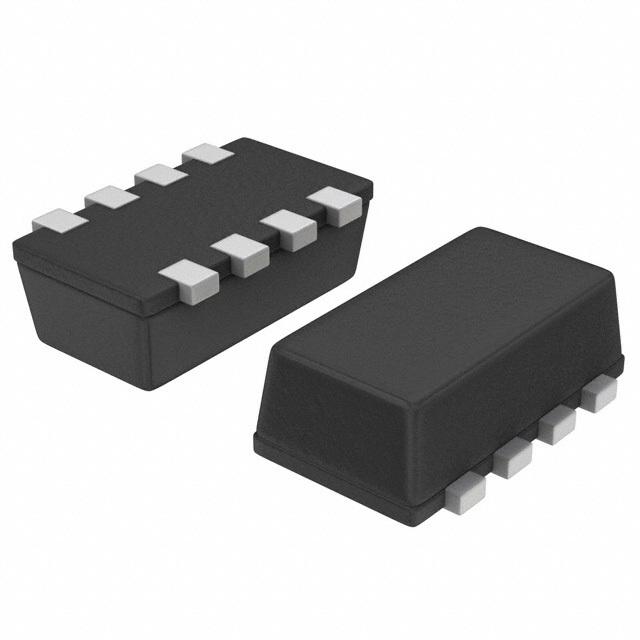

Images are for reference only.
See Product Specifications for product details.
Buy NTHS4111PT1G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NTHS4111PT1G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NTHS4111PT1G Datasheet| Part Number | NTHS4111PT1G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET P-CH 30V 3.3A CHIPFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NTHS4111PT1G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET P-CH 30V 3.3A CHIPFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5527 pcs |
| Datasheet | NTHS4111PT1G.pdf |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | ChipFET™ |
| Series | - |
| Rds On (Max) @ Id, Vgs | 45 mOhm @ 4.4A, 10V |
| Power Dissipation (Max) | 700mW (Ta) |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Flat Lead |
| Other Names | NTHS4111PT1GOSTR |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1500pF @ 24V |
| Gate Charge (Qg) (Max) @ Vgs | 28nC @ 10V |
| FET Type | P-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | P-Channel 30V 3.3A (Ta) 700mW (Ta) Surface Mount ChipFET™ |
| Current - Continuous Drain (Id) @ 25°C | 3.3A (Ta) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 5527 pcs of AMI Semiconductor / ON SemiconductorNTHS4111PT1G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
