CM1451-08CP
AMI Semiconductor / ON Semiconductor

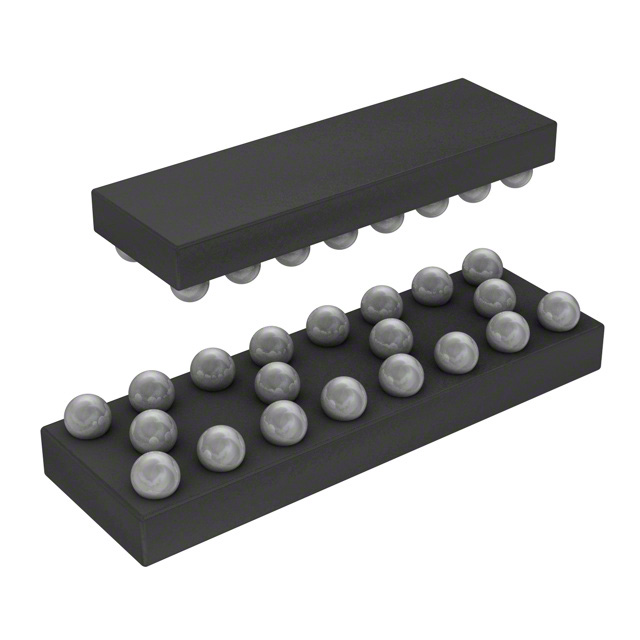

Images are for reference only.
See Product Specifications for product details.
Buy CM1451-08CP with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy CM1451-08CP with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload CM1451-08CP Datasheet| Part Number | CM1451-08CP |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | FILTER LC(PI) 34NH/28.5PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | CM1451-08CP |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | EMI/RFI Filters (LC, RC Networks) |
| Description | FILTER LC(PI) 34NH/28.5PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4021 pcs |
| Datasheet | CM1451-08CP.pdf |
| Voltage - Rated | - |
| Values | L = 34nH (Total), C = 28.5pF (Total) |
| Type | Low Pass |
| Technology | LC (Pi) |
| Size / Dimension | 0.158" L x 0.054" W (4.01mm x 1.38mm) |
| Series | - |
| Resistance - Channel (Ohms) | 18 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFBGA, WLCSP |
| Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 8 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.028" (0.70mm) |
| Filter Order | 5th |
| ESD Protection | Yes |
| Detailed Description | LC (Pi) EMI Filter 5th Order Low Pass 8 Channel L = 34nH (Total), C = 28.5pF (Total) 30mA 20-WFBGA, WLCSP |
| Current | 30mA |
| Center / Cutoff Frequency | 260MHz (Cutoff) |
| Attenuation Value | 35dB @ 800MHz ~ 2.7GHz |
| Applications | Data Lines for Mobile Devices |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 4021 pcs of AMI Semiconductor / ON SemiconductorCM1451-08CP in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
