2SA1768S-AN
AMI Semiconductor / ON Semiconductor

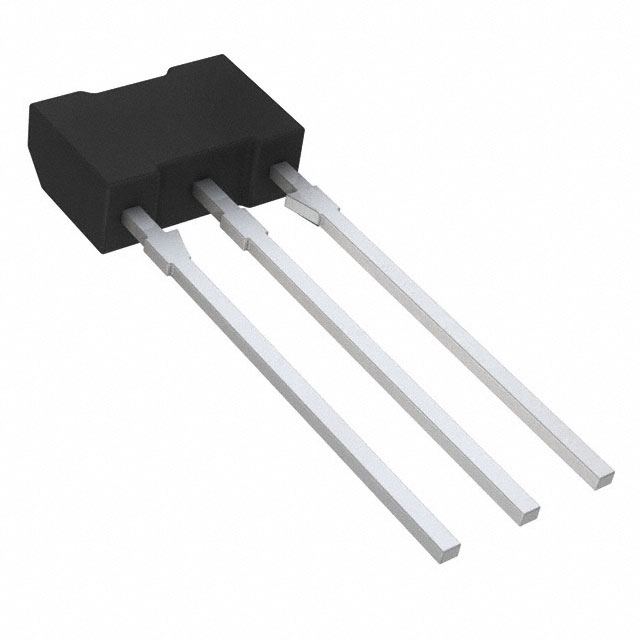

Images are for reference only.
See Product Specifications for product details.
Buy 2SA1768S-AN with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2SA1768S-AN with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 2SA1768S-AN Datasheet| Part Number | 2SA1768S-AN |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS PNP 160V 700UA NMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | 2SA1768S-AN |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - Bipolar (BJT) - Single |
| Description | TRANS PNP 160V 700UA NMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5520 pcs |
| Datasheet | 2SA1768S-AN.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 160V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 25mA, 250mA |
| Transistor Type | PNP |
| Supplier Device Package | 3-NMP |
| Series | - |
| Power - Max | 1W |
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-71 |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | 120MHz |
| Detailed Description | Bipolar (BJT) Transistor PNP 160V 700µA 120MHz 1W Through Hole 3-NMP |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 5V |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 700µA |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 5520 pcs of AMI Semiconductor / ON Semiconductor2SA1768S-AN in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
RFQ Email: sales@gfg-tx.com
