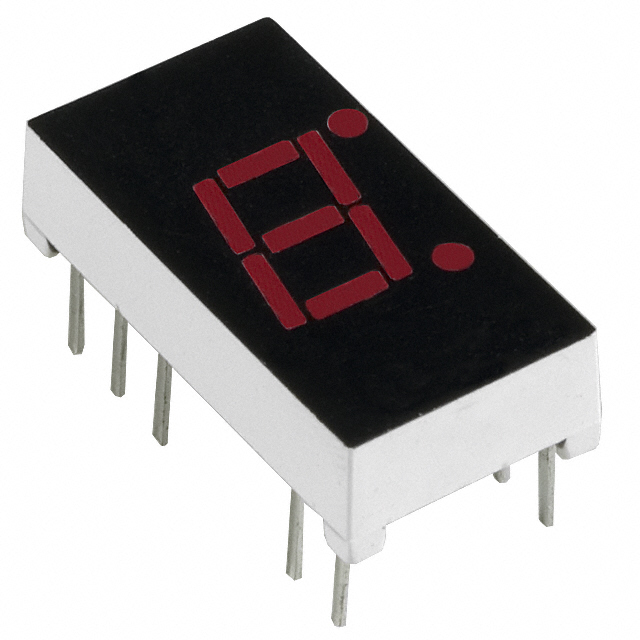

MAN71A
AMI Semiconductor / ON Semiconductor
Images are for reference only.
See Product Specifications for product details.
Buy MAN71A with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy MAN71A with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload MAN71A Datasheet| Part Number | MAN71A |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | LED 7-SEG SGL CA RED RHDP .3" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | MAN71A |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Display Modules - LED Character and Numeric |
| Description | LED 7-SEG SGL CA RED RHDP .3" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5719 pcs |
| Datasheet | MAN71A.pdf |
| Wavelength - Peak | 660nm |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Size / Dimension | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) |
| Series | - |
| Power Dissipation (Max) | 480mW |
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Millicandela Rating | 0.35mcd |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment |
| Digit/Alpha Size | 0.30" (7.62mm) |
| Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Anode 2.2V 20mA 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) 14-DIP (0.300", 7.62mm) |
| Current - Test | 20mA |
| Common Pin | Common Anode |
| Color | Red |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 5719 pcs of AMI Semiconductor / ON SemiconductorMAN71A in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
RFQ Email: sales@gfg-tx.com
