NCP1012APL065R2G
AMI Semiconductor / ON Semiconductor

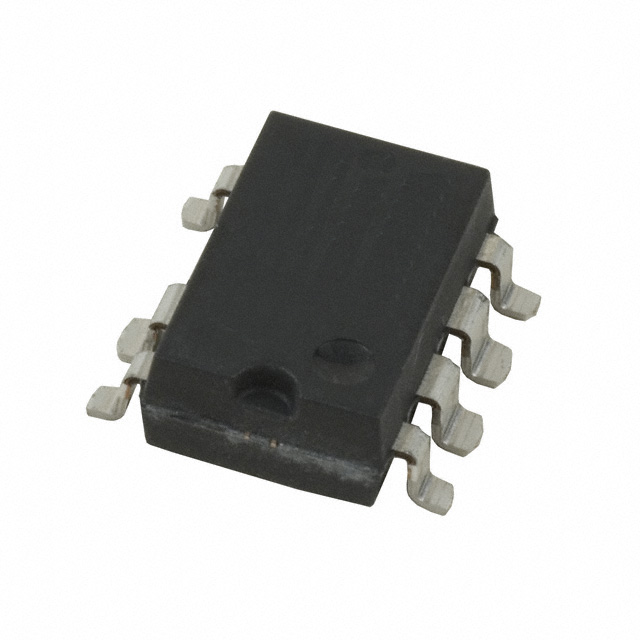

Images are for reference only.
See Product Specifications for product details.
Buy NCP1012APL065R2G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NCP1012APL065R2G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NCP1012APL065R2G Datasheet| Part Number | NCP1012APL065R2G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC CTRLR/MOSFET 65KHZ 7DIPGW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NCP1012APL065R2G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - AC DC Converters, Offline Switchers |
| Description | IC CTRLR/MOSFET 65KHZ 7DIPGW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4952 pcs |
| Datasheet | NCP1012APL065R2G.pdf |
| Voltage - Supply (Vcc/Vdd) | 8.5 V ~ 10 V |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Supplier Device Package | 7-PDIP, Gullwing |
| Series | - |
| Power (Watts) | 19W |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Output Isolation | Isolated |
| Other Names | NCP1012APL065R2G-ND NCP1012APL065R2GOSTR |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes |
| Frequency - Switching | 65kHz |
| Fault Protection | Over Load, Over Temperature, Over Voltage |
| Duty Cycle | 67% |
| Detailed Description | Converter Offline Flyback Topology 65kHz 7-PDIP, Gullwing |
| Control Features | - |
| Base Part Number | NCP1012 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 4952 pcs of AMI Semiconductor / ON SemiconductorNCP1012APL065R2G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
