2N3417
AMI Semiconductor / ON Semiconductor

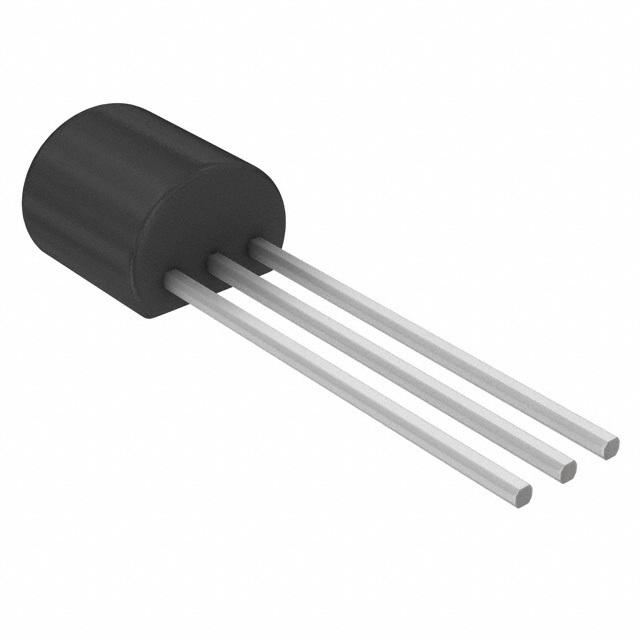

Images are for reference only.
See Product Specifications for product details.
Buy 2N3417 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2N3417 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 2N3417 Datasheet| Part Number | 2N3417 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS NPN 50V 0.5A TO-92 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | 2N3417 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - Bipolar (BJT) - Single |
| Description | TRANS NPN 50V 0.5A TO-92 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4143 pcs |
| Datasheet | 2N3417.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 3mA, 50mA |
| Transistor Type | NPN |
| Supplier Device Package | TO-92-3 |
| Series | - |
| Power - Max | 625mW |
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor NPN 50V 500mA 625mW Through Hole TO-92-3 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 2mA, 4.5V |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 500mA |
| Base Part Number | 2N3417 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 4143 pcs of AMI Semiconductor / ON Semiconductor2N3417 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
