NCV8503PW50G
AMI Semiconductor / ON Semiconductor

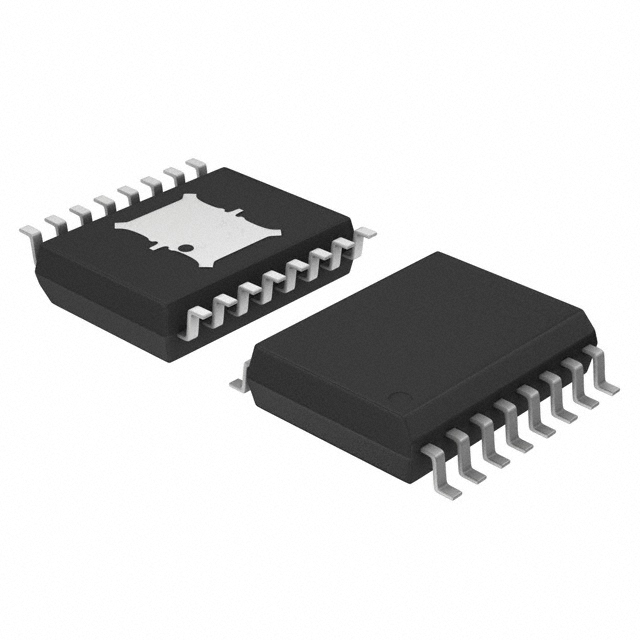

Images are for reference only.
See Product Specifications for product details.
Buy NCV8503PW50G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NCV8503PW50G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NCV8503PW50G Datasheet| Part Number | NCV8503PW50G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC REG LINEAR 5V 400MA 16SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NCV8503PW50G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - Voltage Regulators - Linear |
| Description | IC REG LINEAR 5V 400MA 16SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5672 pcs |
| Datasheet | NCV8503PW50G.pdf |
| Voltage Dropout (Max) | 0.6V @ 400mA |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage - Input (Max) | 45V |
| Supplier Device Package | 16-SOIC |
| Series | Automotive, AEC-Q100 |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Packaging | Tube |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) Exposed Pad |
| PSRR | - |
| Output Type | Fixed |
| Output Configuration | Positive |
| Operating Temperature | -40°C ~ 150°C |
| Number of Regulators | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 5V 400mA 16-SOIC |
| Current - Supply (Max) | 45mA |
| Current - Quiescent (Iq) | 350µA |
| Current - Output | 400mA |
| Control Features | Enable, Reset |
| Base Part Number | NCV8503 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 5672 pcs of AMI Semiconductor / ON SemiconductorNCV8503PW50G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
