LB11683H-TLM-E
AMI Semiconductor / ON Semiconductor

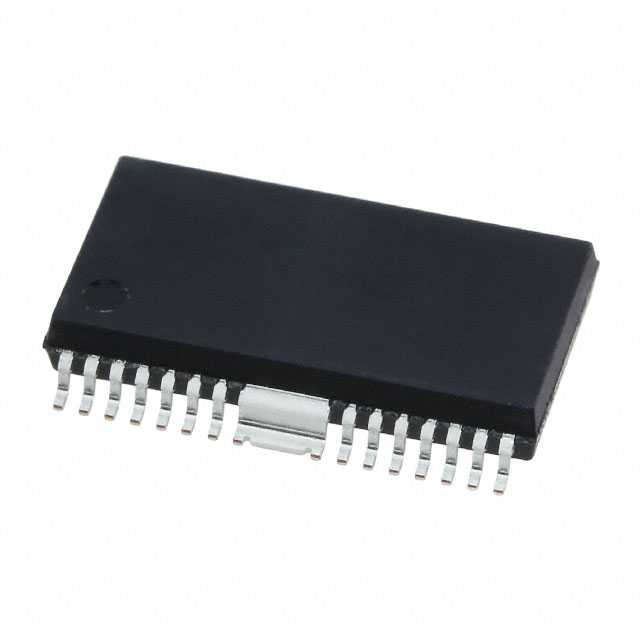

Images are for reference only.
See Product Specifications for product details.
Buy LB11683H-TLM-E with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy LB11683H-TLM-E with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload LB11683H-TLM-E Datasheet| Part Number | LB11683H-TLM-E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC MOTOR DRIVER PAR 28HSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | LB11683H-TLM-E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - Motor Drivers, Controllers |
| Description | IC MOTOR DRIVER PAR 28HSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4858 pcs |
| Datasheet | LB11683H-TLM-E.pdf |
| Voltage - Supply | 5.5 V ~ 13.8 V |
| Voltage - Load | 5.5 V ~ 13.8 V |
| Technology | Bipolar |
| Supplier Device Package | 28-HSOP-HC |
| Step Resolution | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs |
| Output Configuration | Half Bridge (3) |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Parallel |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description | Motor Driver Bipolar Parallel 28-HSOP-HC |
| Current - Output | 1.5A |
| Base Part Number | LB11683 |
| Applications | General Purpose |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 4858 pcs of AMI Semiconductor / ON SemiconductorLB11683H-TLM-E in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
