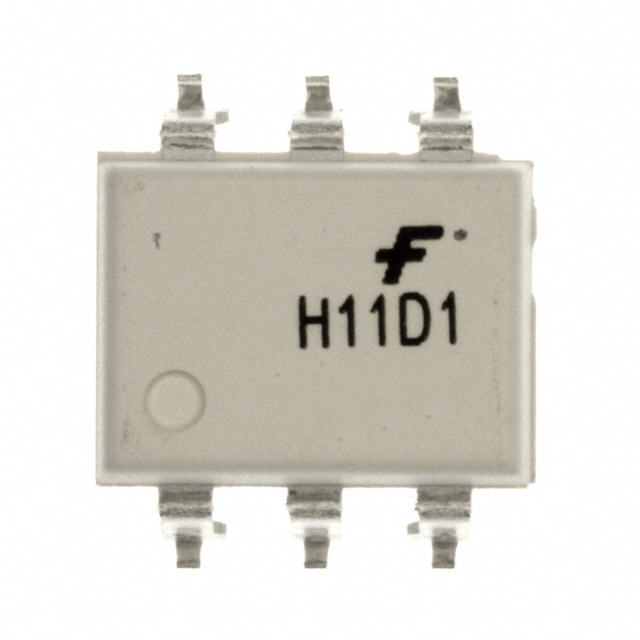

H11D1SM
AMI Semiconductor / ON Semiconductor
Images are for reference only.
See Product Specifications for product details.
Buy H11D1SM with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy H11D1SM with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload H11D1SM Datasheet| Part Number | H11D1SM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 4.17KV TRANS W/BASE 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | H11D1SM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Optoisolators - Transistor, Photovoltaic Output |
| Description | OPTOISO 4.17KV TRANS W/BASE 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 168982 pcs |
| Datasheet | H11D1SM.pdf |
| Voltage - Output (Max) | 300V |
| Voltage - Isolation | 4170Vrms |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Vce Saturation (Max) | 400mV |
| Turn On / Turn Off Time (Typ) | 5µs, 5µs |
| Supplier Device Package | 6-SMD |
| Series | - |
| Rise / Fall Time (Typ) | - |
| Packaging | Tube |
| Package / Case | 6-SMD, Gull Wing |
| Output Type | Transistor with Base |
| Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD |
| Current Transfer Ratio (Min) | 20% @ 10mA |
| Current Transfer Ratio (Max) | - |
| Current - Output / Channel | 100mA |
| Current - DC Forward (If) (Max) | 80mA |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 168982 pcs of AMI Semiconductor / ON SemiconductorH11D1SM in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
